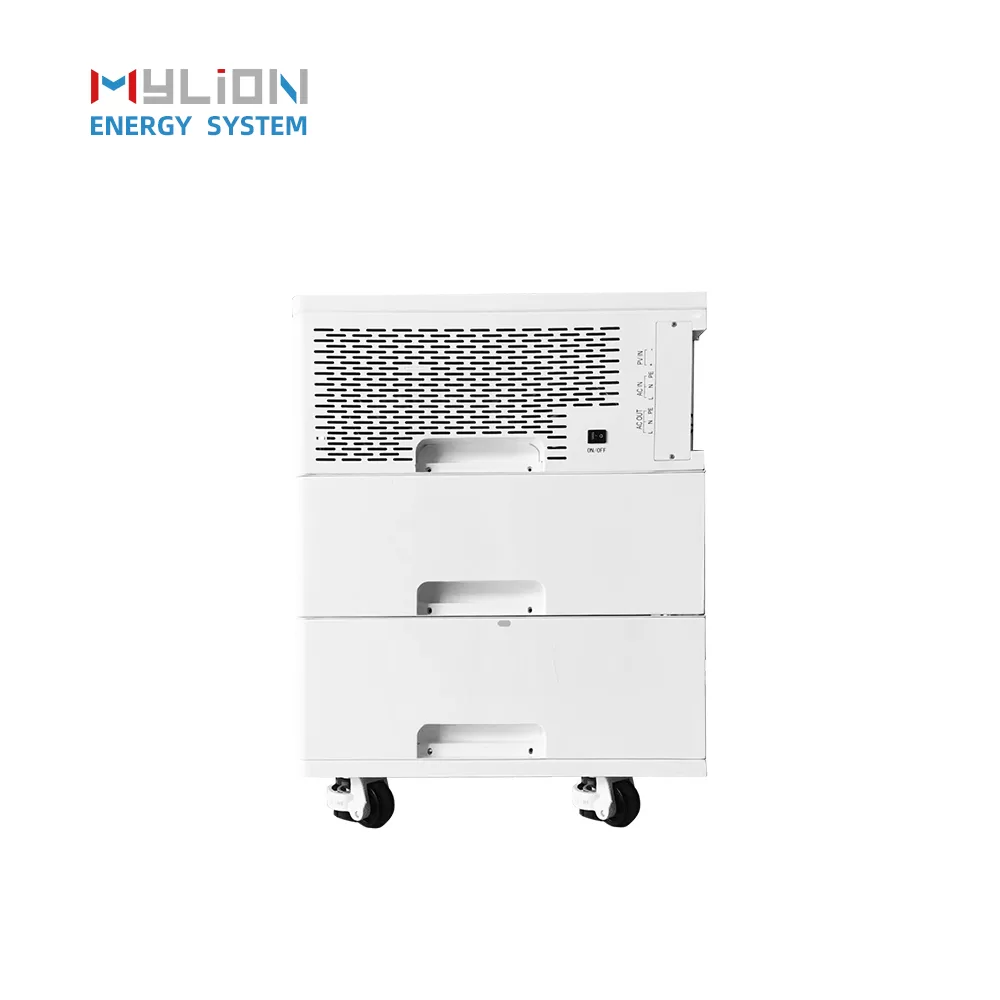

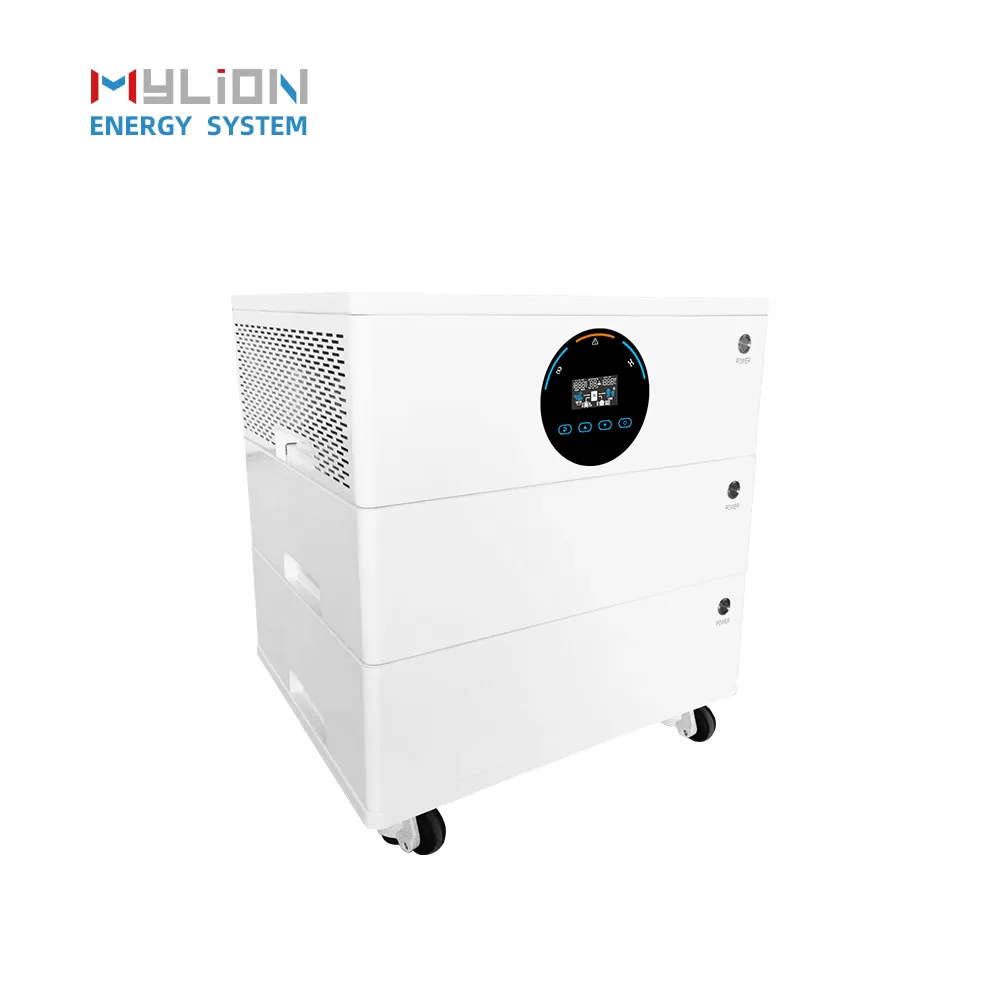

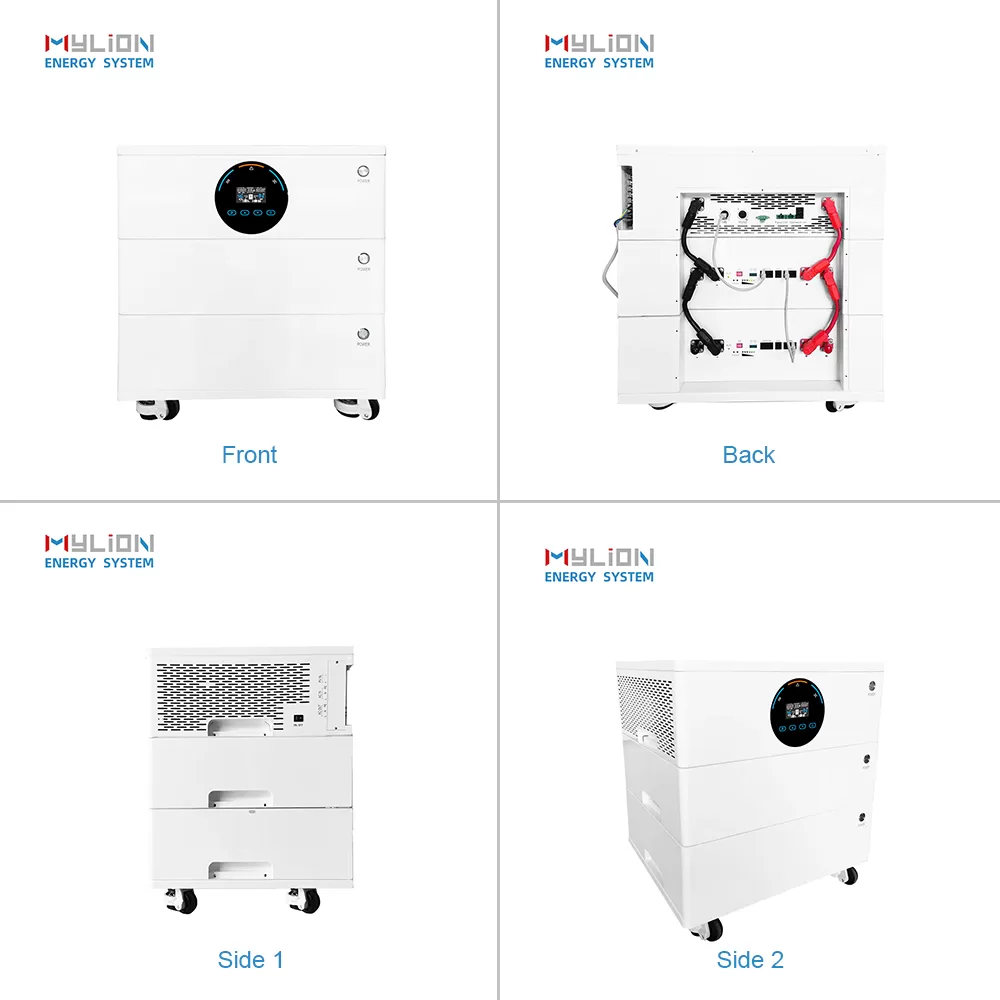

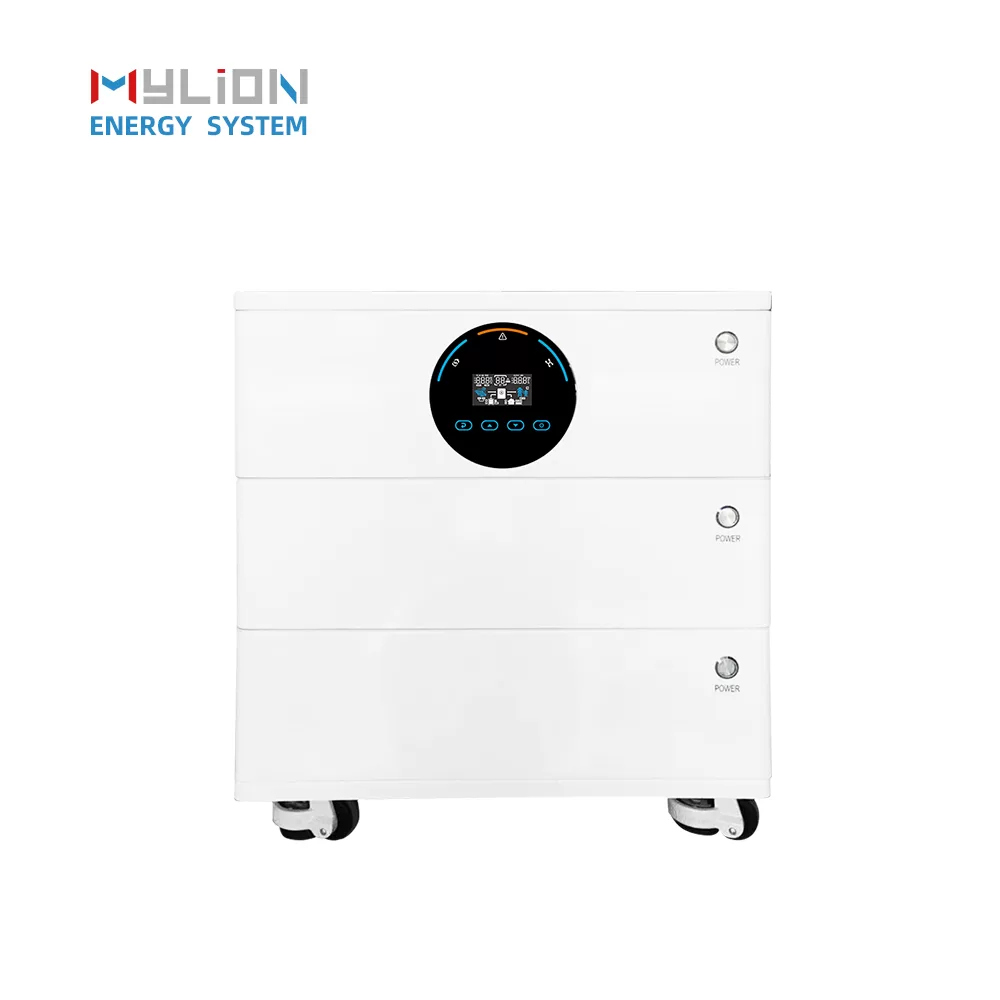

Mylion App Control Complete Solar System Cost Price 10KW Solar Energy Systems
Mylion App Control Complete Solar System Cost Price 10KW Solar Energy Systems - Image 2
Mylion App Control Complete Solar System Cost Price 10KW Solar Energy Systems - Image 3
Mylion App Control Complete Solar System Cost Price 10KW Solar Energy Systems - Image 4
Mylion App Control Complete Solar System Cost Price 10KW Solar Energy Systems - Image 5

Mylion App Control Complete Solar System Cost Price 10KW Solar Energy Systems

  • LFP 51.2V 200Ah battery pack 10.24kWh
  • Nominal capacity: 200Ah
  • Nominal voltage: 51.2V
  • Rated charge/discharge rate: 0.5C
  • Communication: RS485/CAN/RS232
  • Cycle life: over 6000times
  • Cell certification: UL1973,IEC62619,IEC62133,UN38.3,MSDS,CE

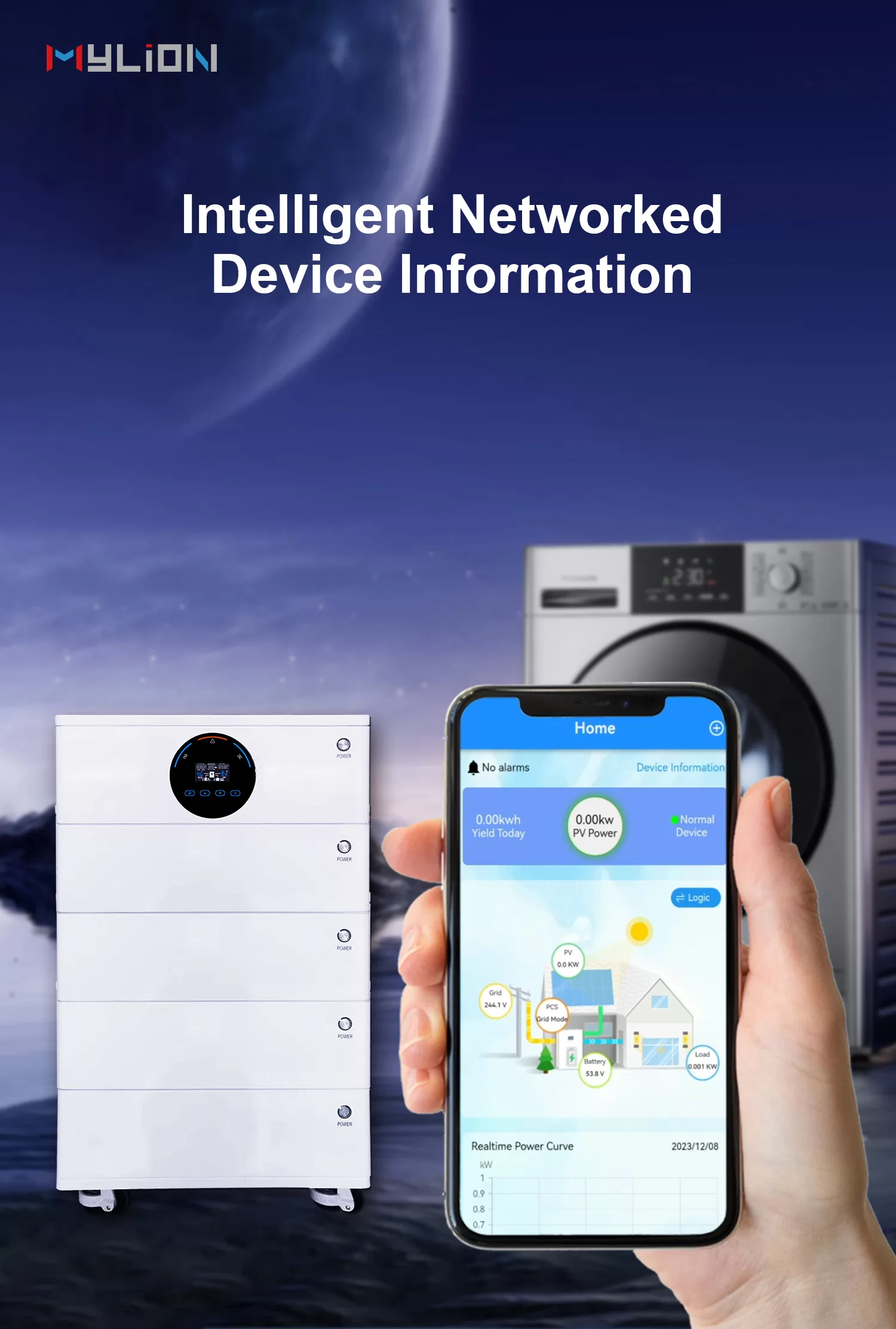

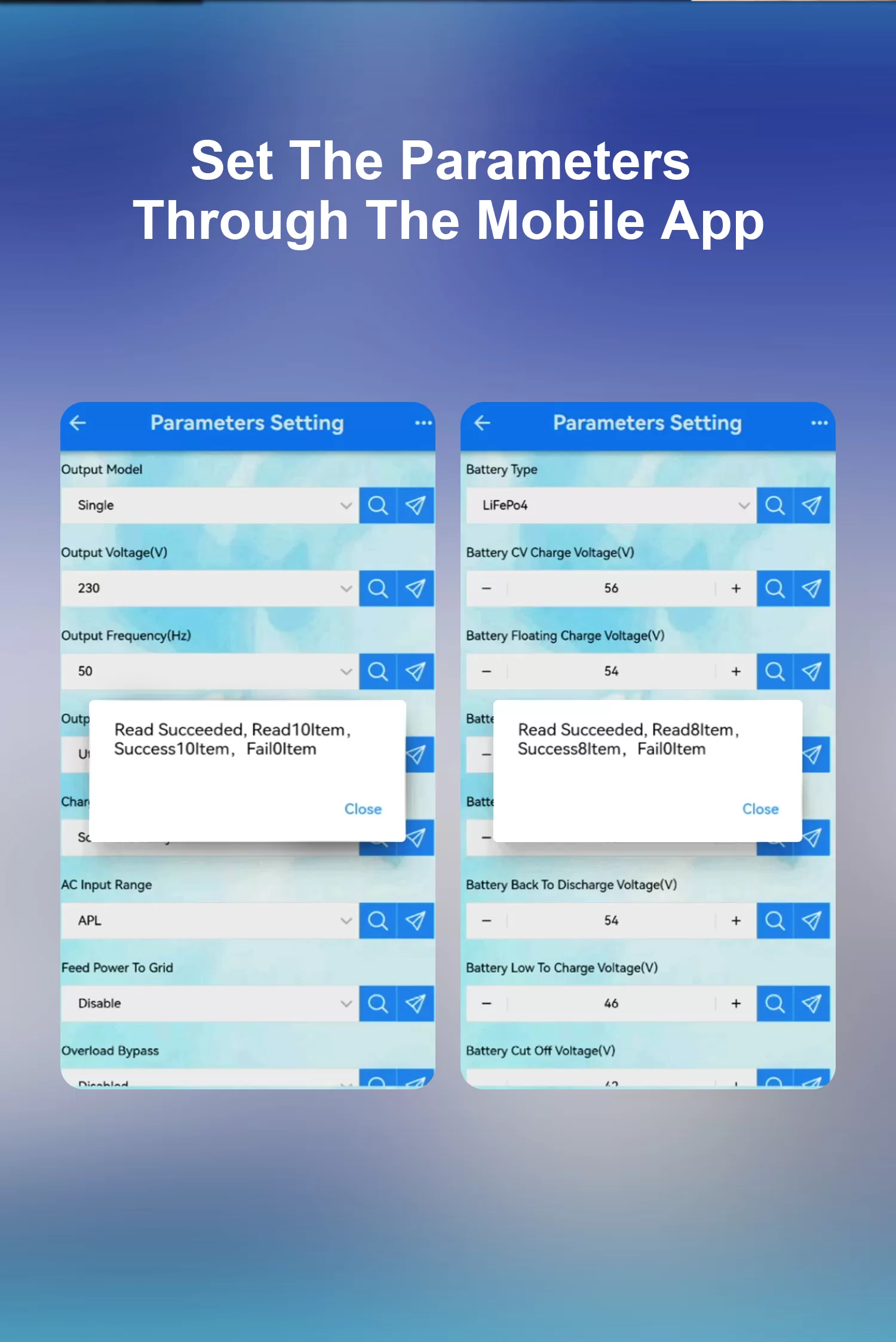

  • Feature: Operate by APP., Can be remote controlled.
Categories: ,

Description

Mylion App Control Complete Solar System Cost Price 10KW Solar Energy Systems

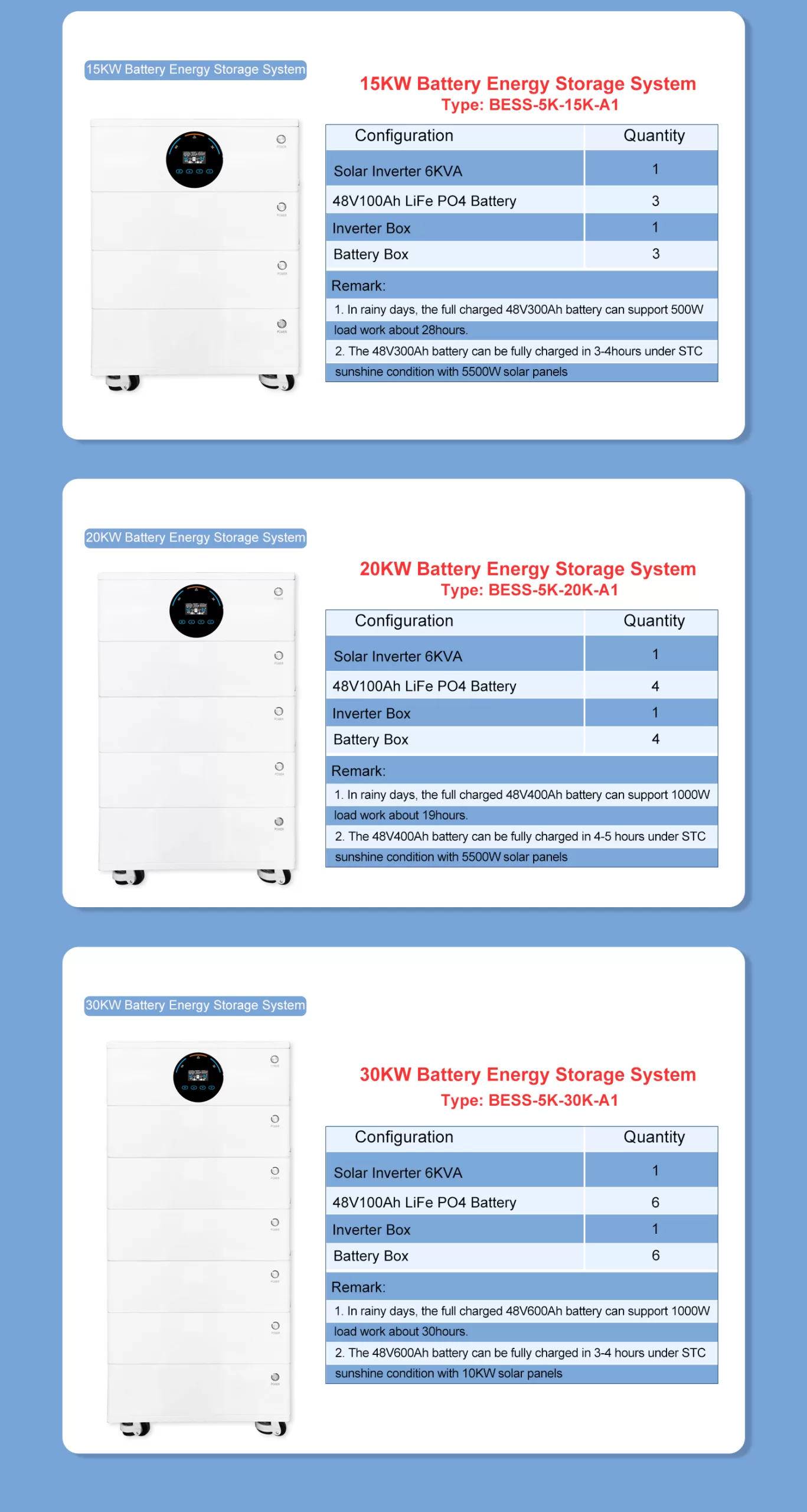

Model 10KW-SES-LFP-5S10 15KW-SES-LFP-5S10 20KW-SES-LFP-5S10
Inverter Type ALL-IN-ON Solar Hybrid Inverter
Inverter Power 5KVA
Inverter Output Voltage 230Vac
Battery Type LiFe PO4 Battery
Battery Capacity 10KWh/48V200Ah 15KWh /48V300Ah 20KWh/400Ah
Normal Discharging Current 50A 50A 50A
Max Discharging Current 200A 300A 400A
Voltage 40.5-53.25VDC
Standard Voltage 48VDC
Max Charging Current 100A
Max Charging Voltage 53.25V
Suggested DOD Model 90%

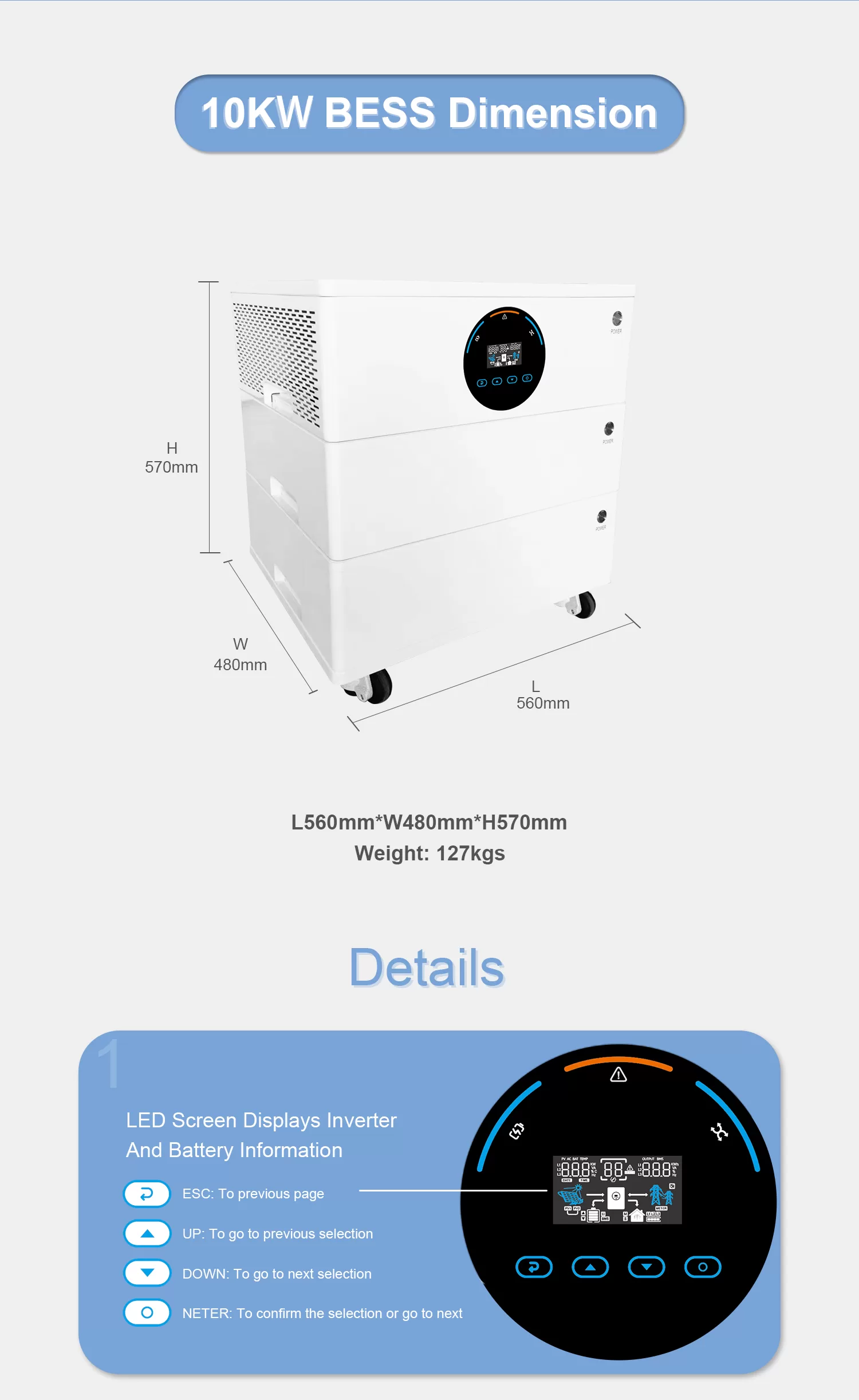

Battery Cabinet Size(mm) H621xW403xL602 H821xW403xL602 H1021xW403xL602
Weight 131kgs 186kgs 241kgs

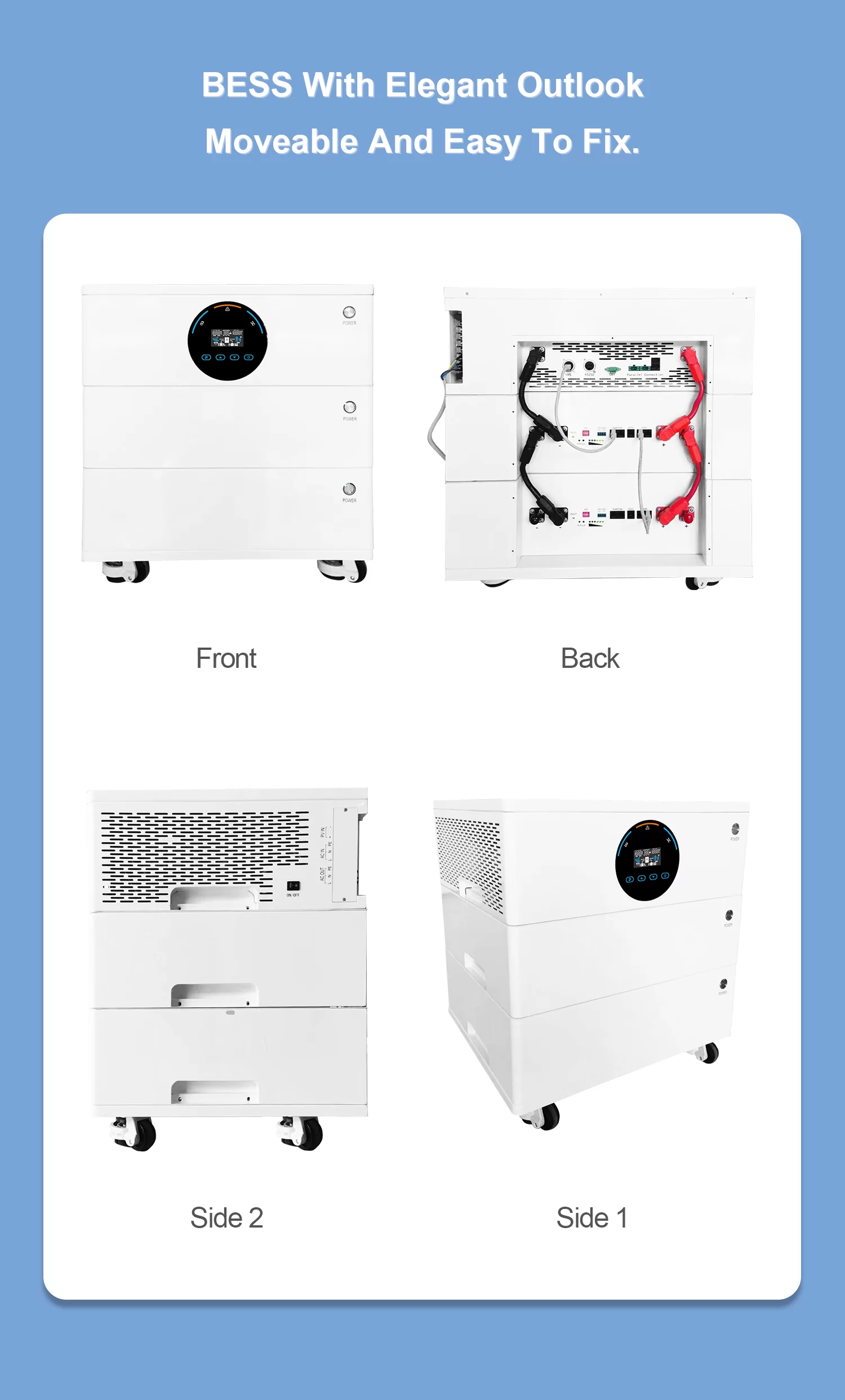

Installation Stacked
Humidity 20-60%
IP Rating IN DOOR
Max Number Of Parrallel 8
Warranty 5 Years
Communication CAN / RS485
Optional Monitor WIFI
Battery Protection Over Current/Over Voltage/Short Circuit/Low Voltage/High Temperature
