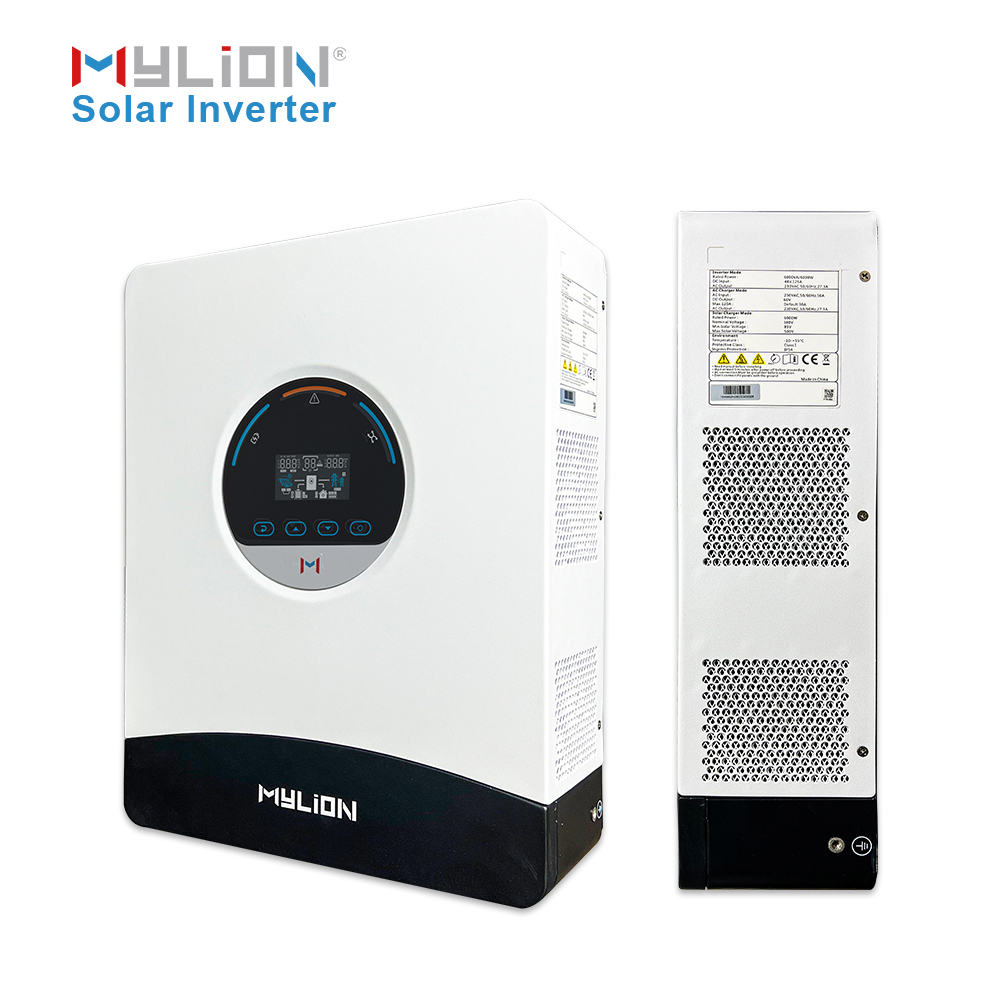

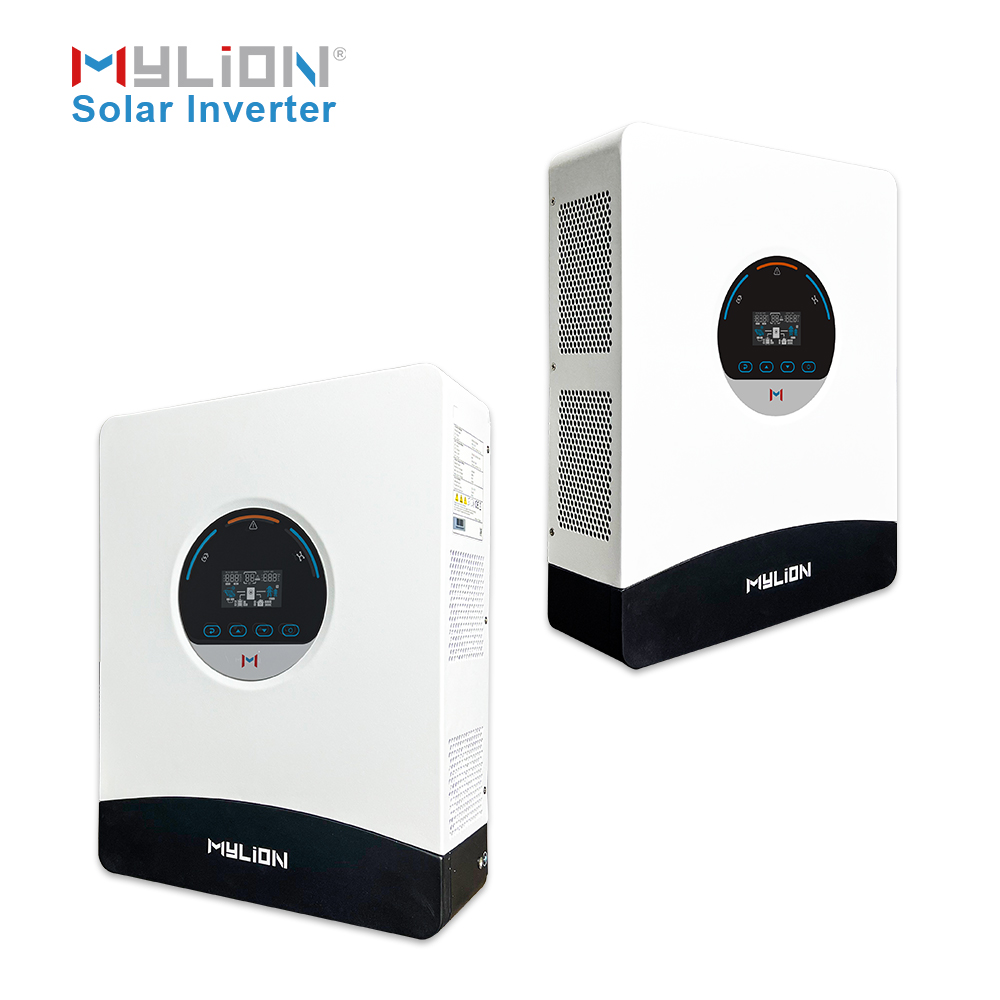

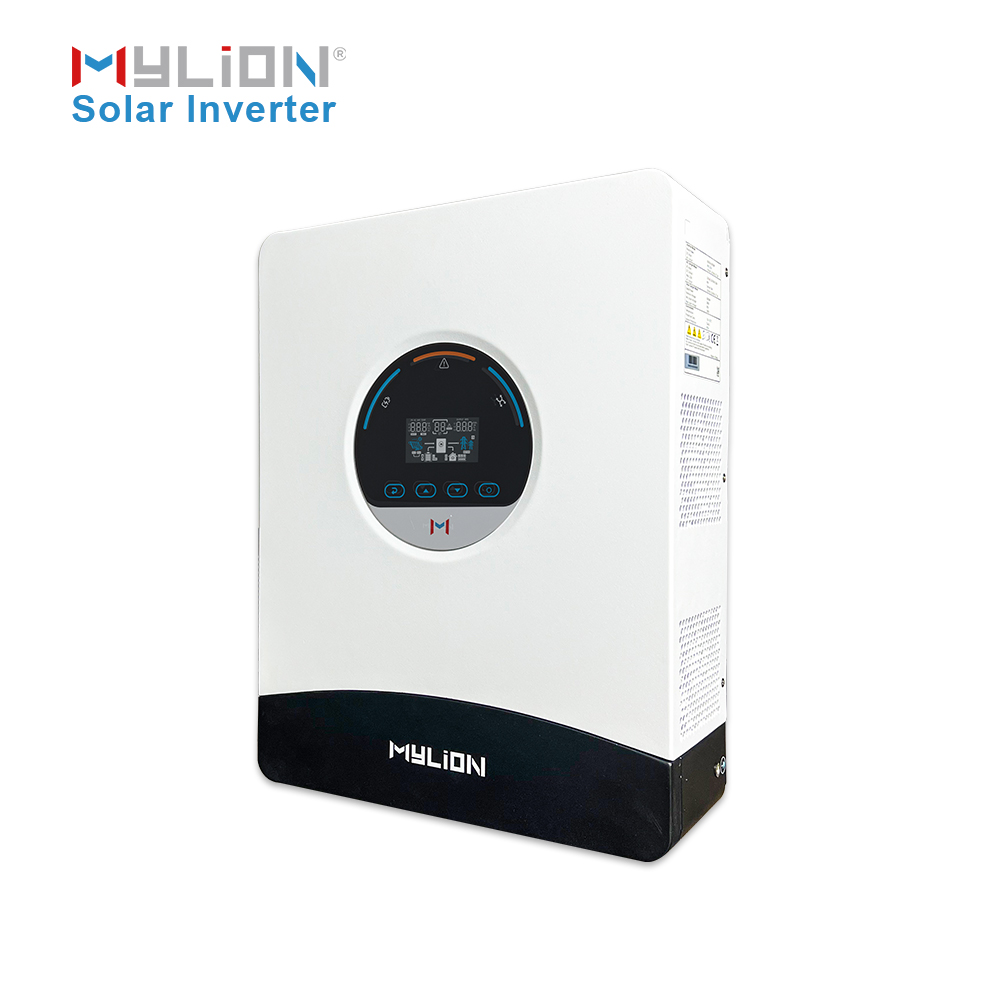

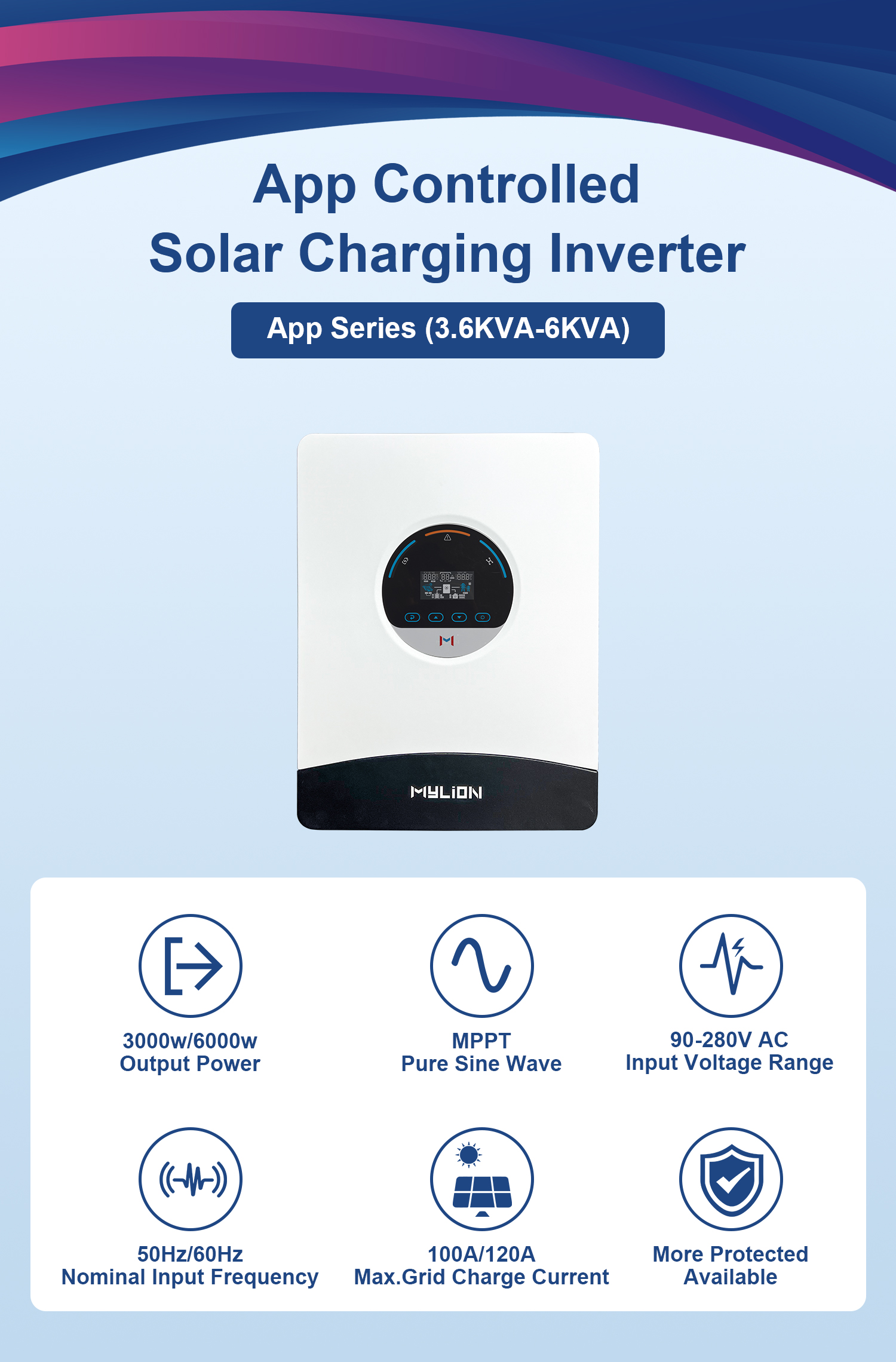

Mylion App Control 3.6KW 6KW Hybrid Off Grid Inverter For Solar Energy System

Model: App-6KL1 (6000W, 48V)

Input Voltage Range: 90Vac – 280Vac

Output Voltage: 230Vac ±5%

Maximum Charging Current: 120A

Battery Voltage Limitation: Output power derates when battery voltage is below 50V, minimum AC output: 180V

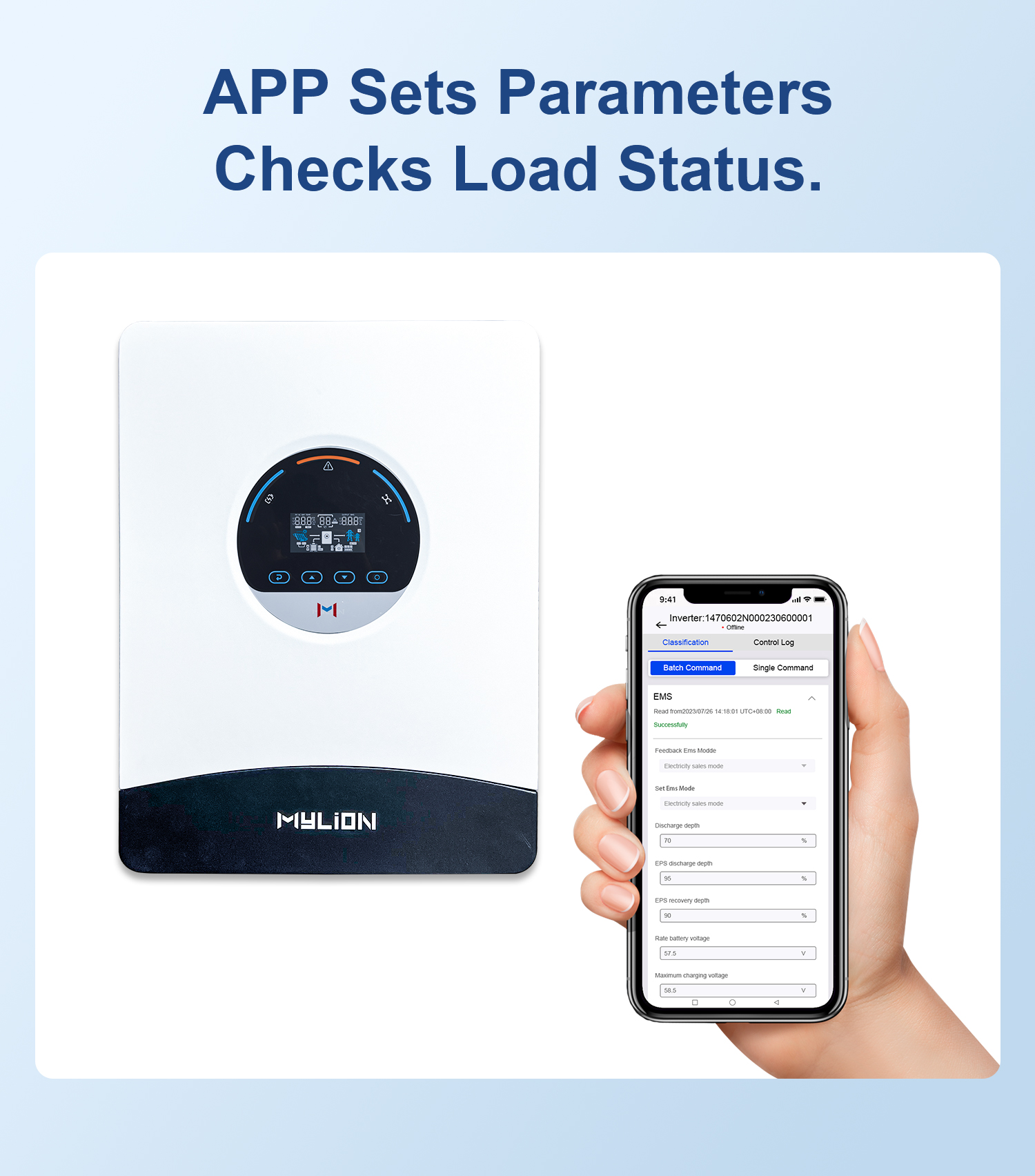

App Control: Supports monitoring and control via smartphone app

Applications:

Residential off-grid systems

Small commercial power setups

Backup power during outages

Telecommunication and IT system

Description

Mylion App Control 3KW 6KW Hybrid Off Grid Inverter For Solar Energy System

Specification	Details
Model	App-3K6L1 (3600W, 24V), App-6KL1 (6000W, 48V)
Power Rating	App-3K6L1: 3600W, App-6KL1: 6000W
Battery Voltage	App-3K6L1: 24V, App-6KL1: 48V
Input Voltage Range	90Vac – 280Vac
Output Voltage	230Vac ± 5%

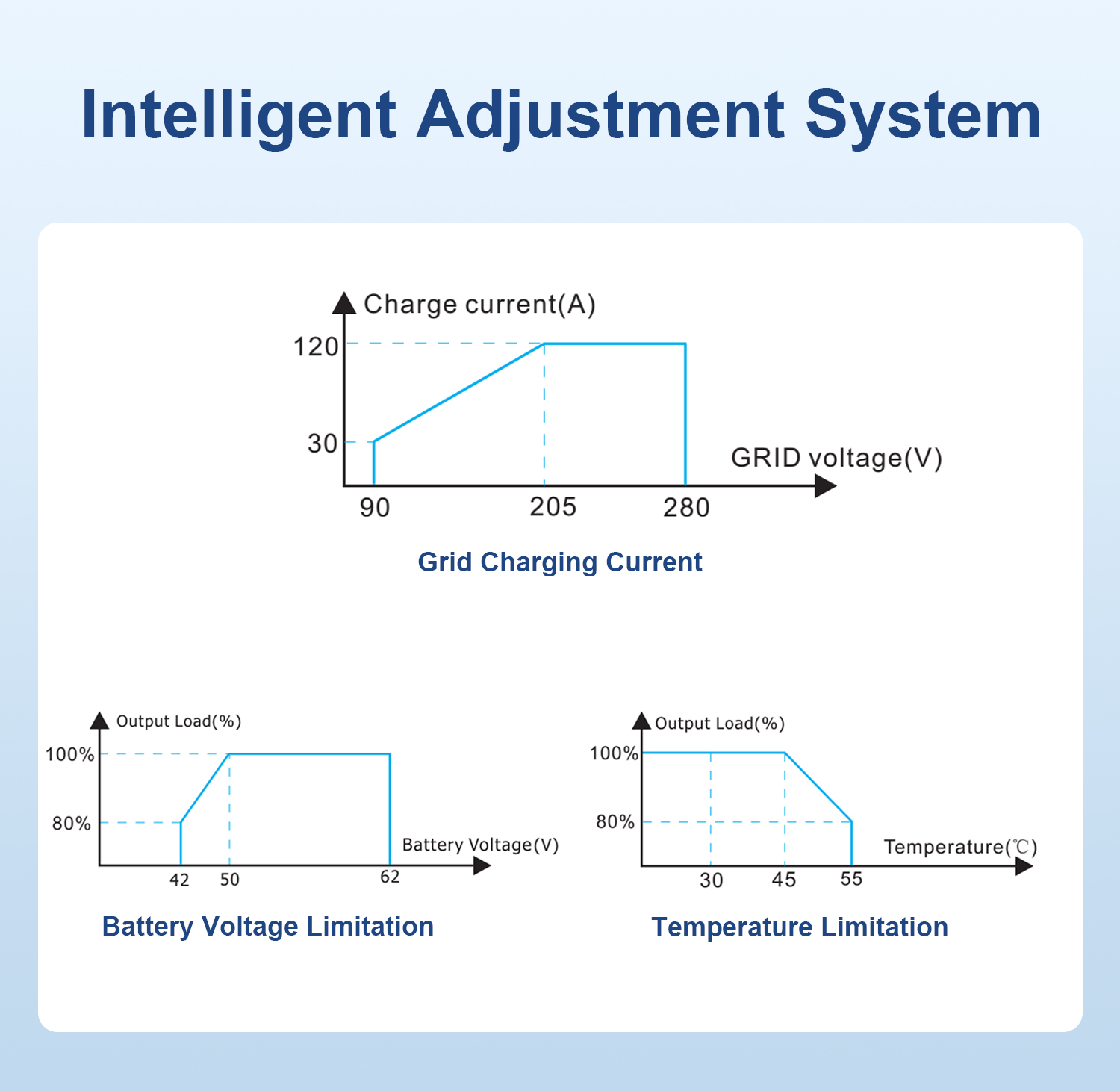

Maximum Charging Current	App-3K6L1: 100A, App-6KL1: 120A
Parallel Capability	Supports up to 12 units in parallel
Battery Voltage Limitation	When the battery voltage is below 50V, output power will be derated. The minimum AC output voltage is 180V
Display & Indicators	– LCD Display
	– Charging Indicator
	– Fault or Warning Indicator
	– Utility Bypass/Inverter Indicator

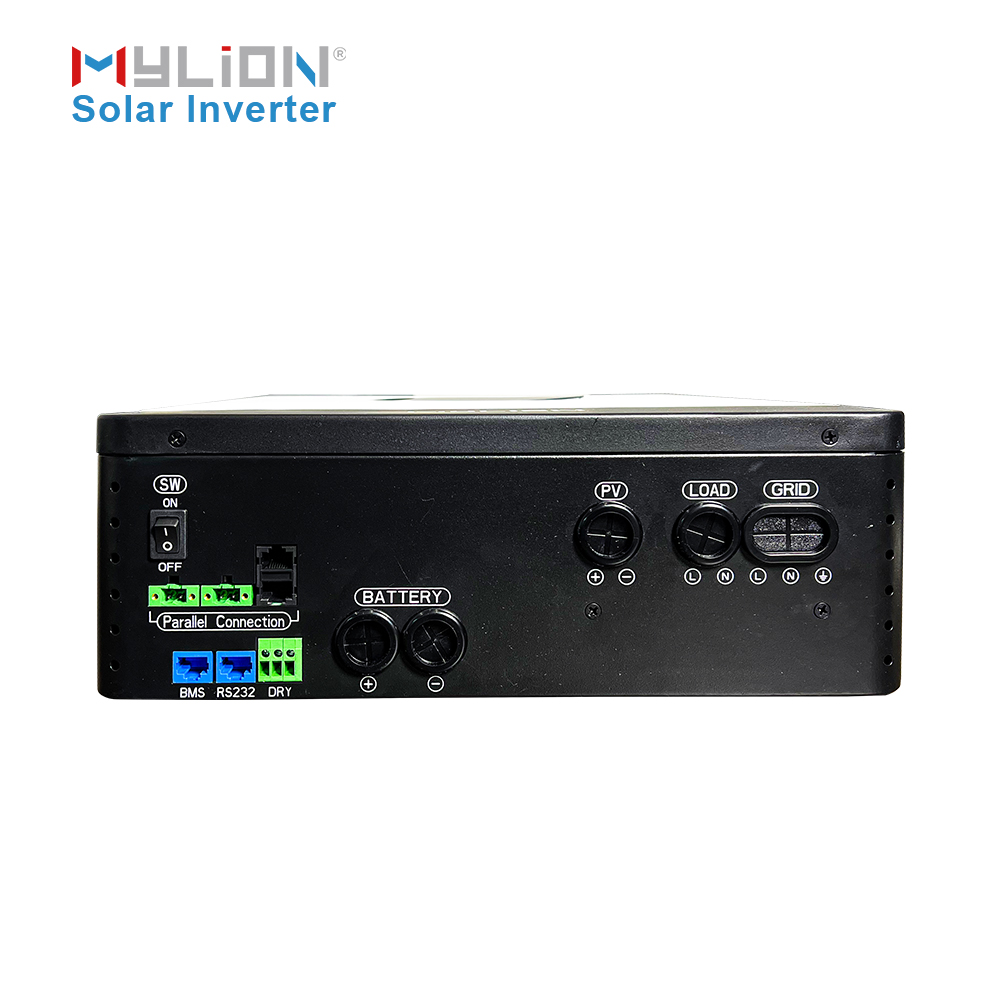

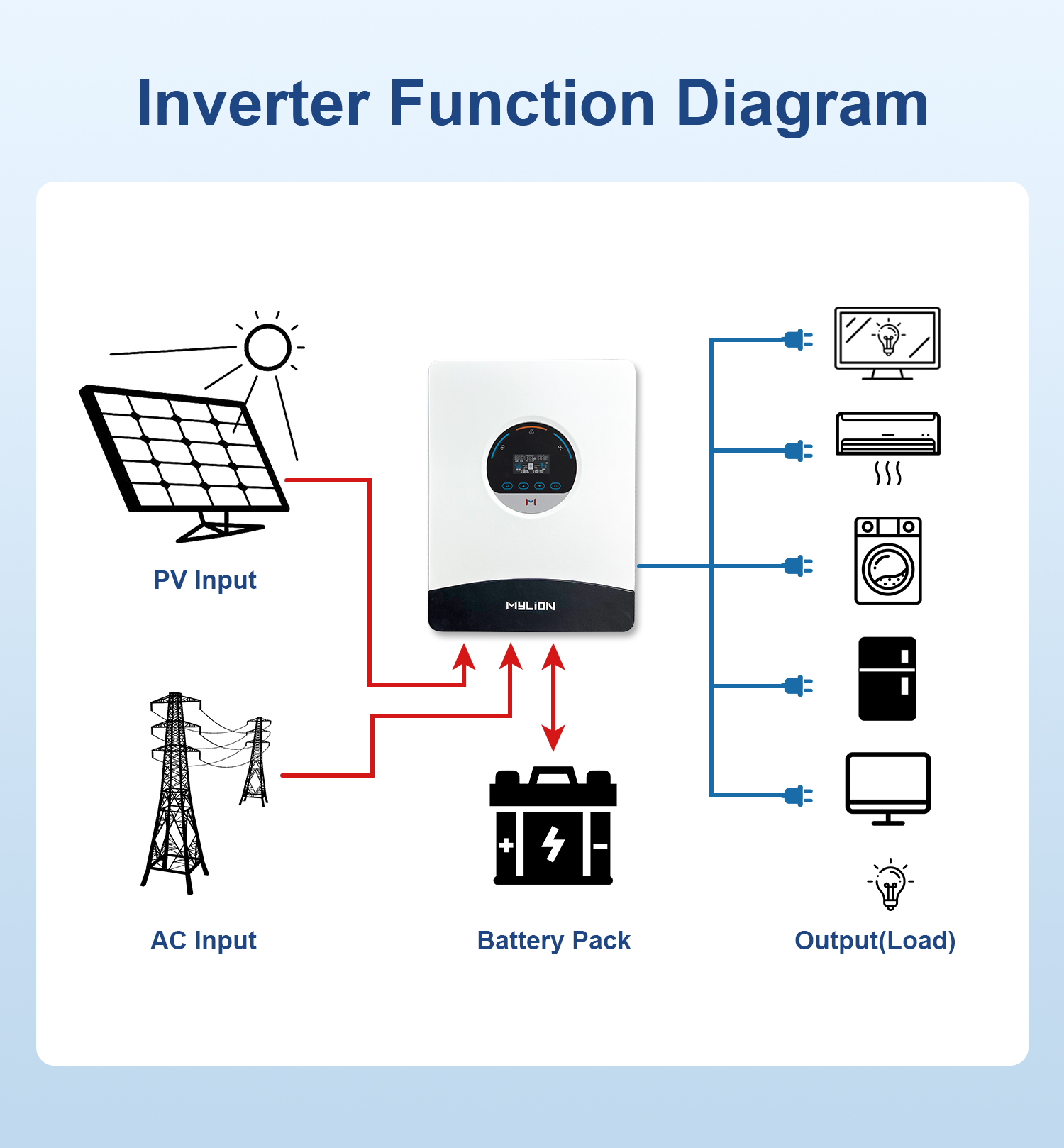

Ports and Connections	– AC output port
	– AC input port
	– Communication connection port
	– Dry contact port
	– Battery+ and Battery- connection ports
	– PV input connection port
	– Parallel connection CAN port
Charging Current	40A (App-3K6L1), 50A (App-6KL1)
Operating Frequency	50Hz/60Hz ± 0.3Hz (adjustable)
Load Capacity	– 5.5s @ ≥150% load
Load Capacity	– 10.5s @ 105%-150% load
Temperature Limitations	When ambient temperature exceeds 45°C, output power is derated. Minimum AC output voltage: 180V

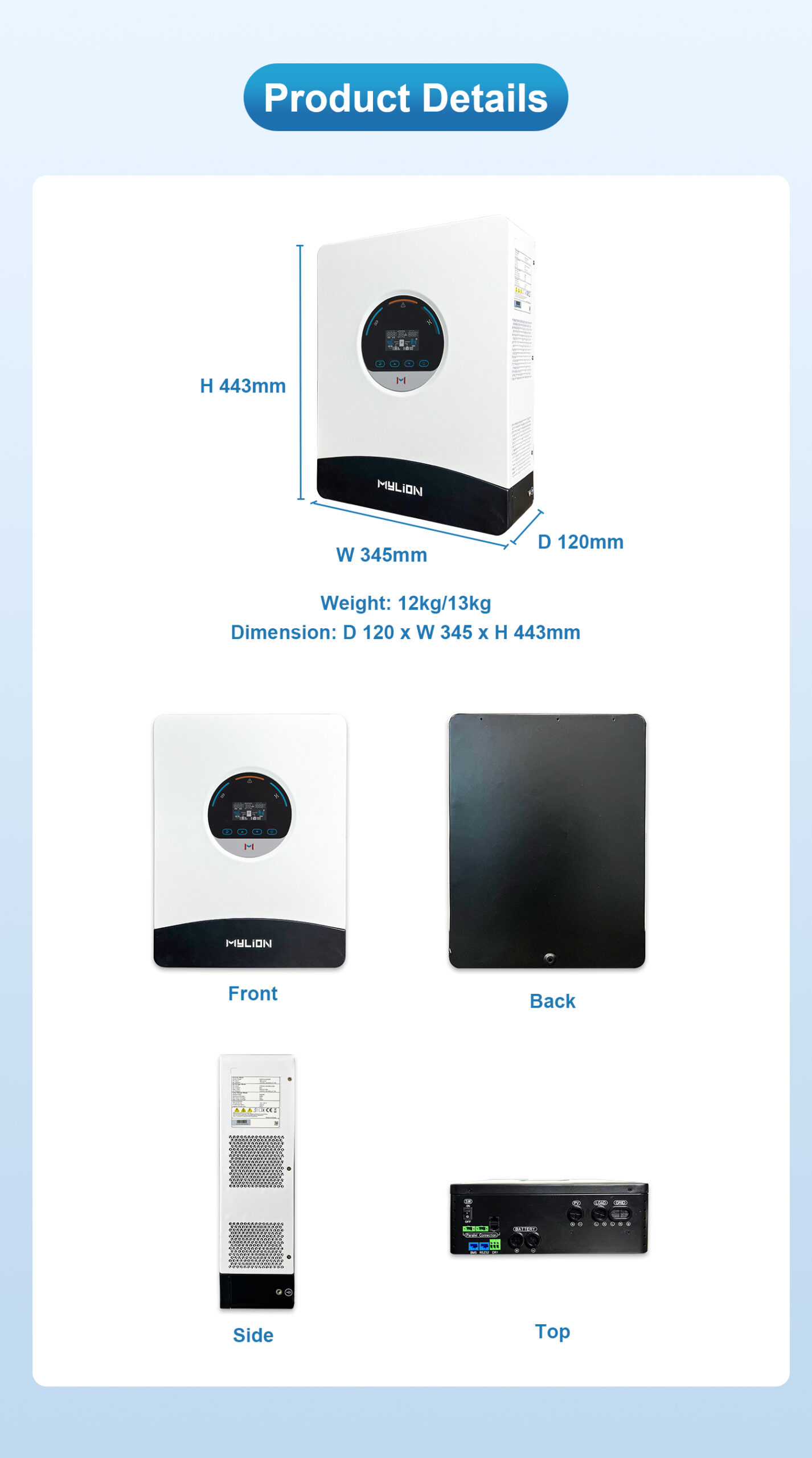

Dimensions (DxWxH)	App-3K6L1: 120x345x443mm
Dimensions (DxWxH)	App-6KL1: 140x365x463mm
Weight	Net Weight: App-3K6L1: 12kg, App-6KL1: 14kg
Weight	Gross Weight: App-3K6L1: 13kg, App-6KL1: 15kg
