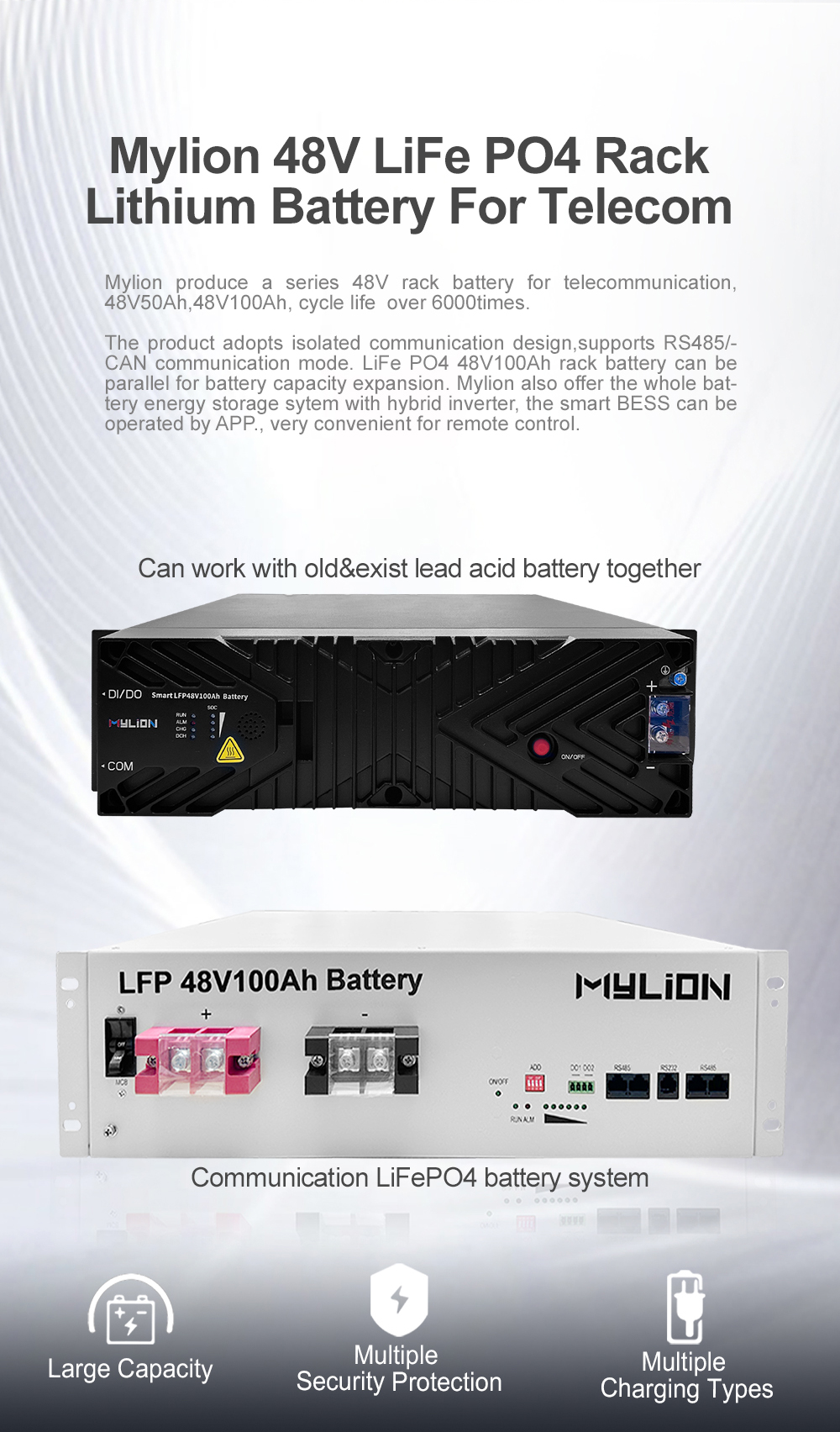

Custom 48V 51.2V 100Ah 200Ah Lithium Battery BMS 5kWh 10kWh 15kWh Server Rack Solar Home Energy Storage LiFePO4 Battery

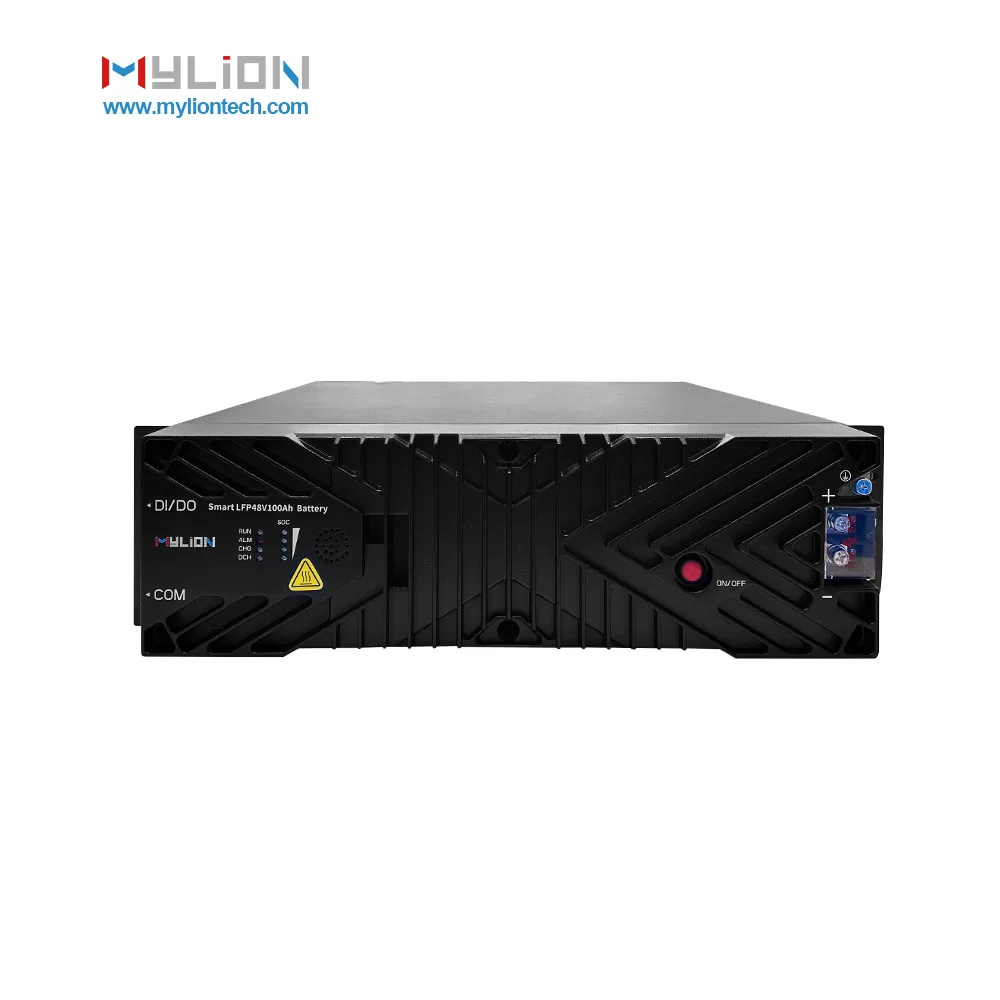

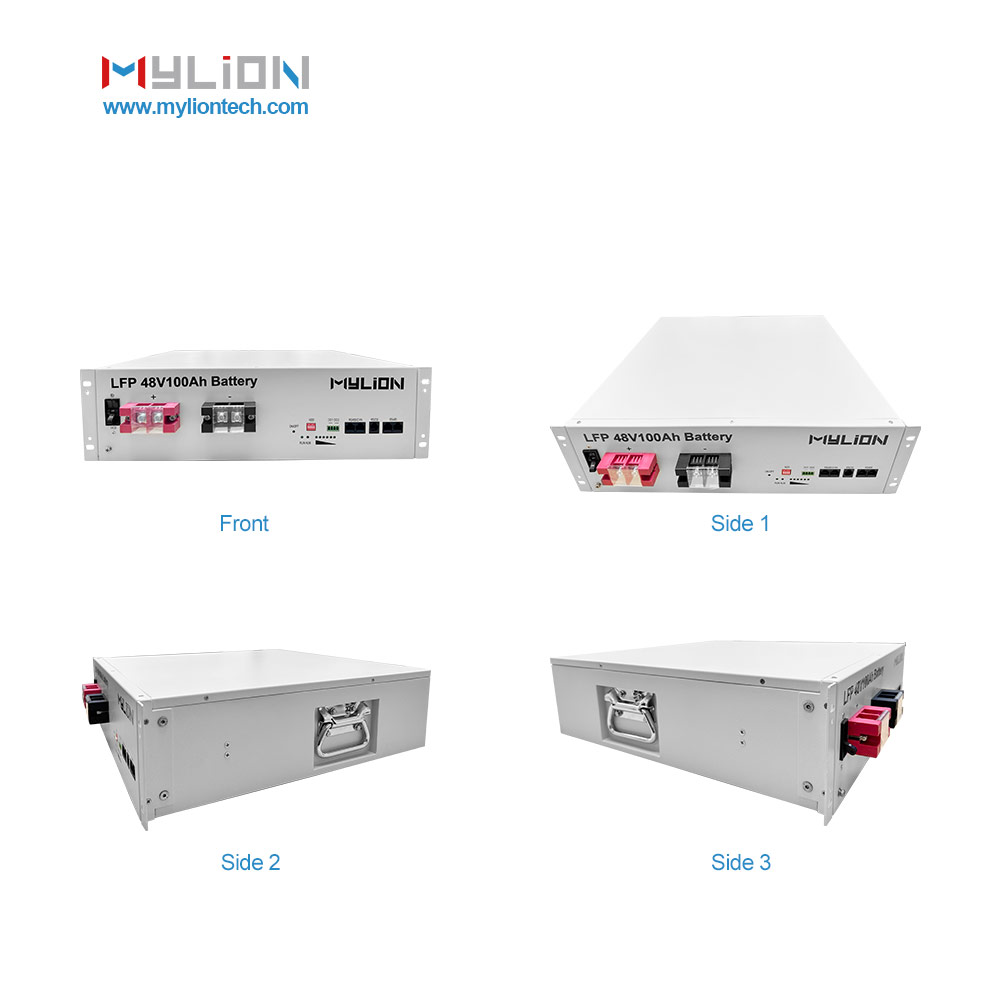

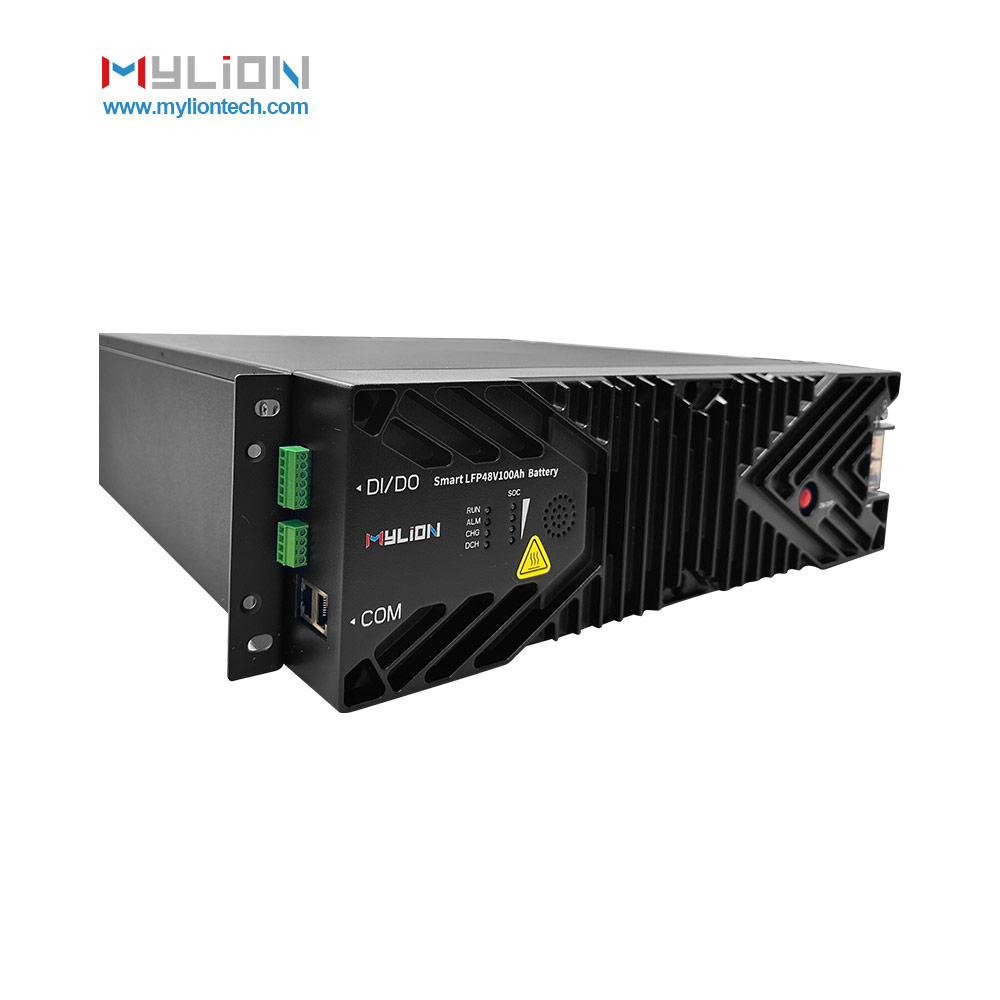

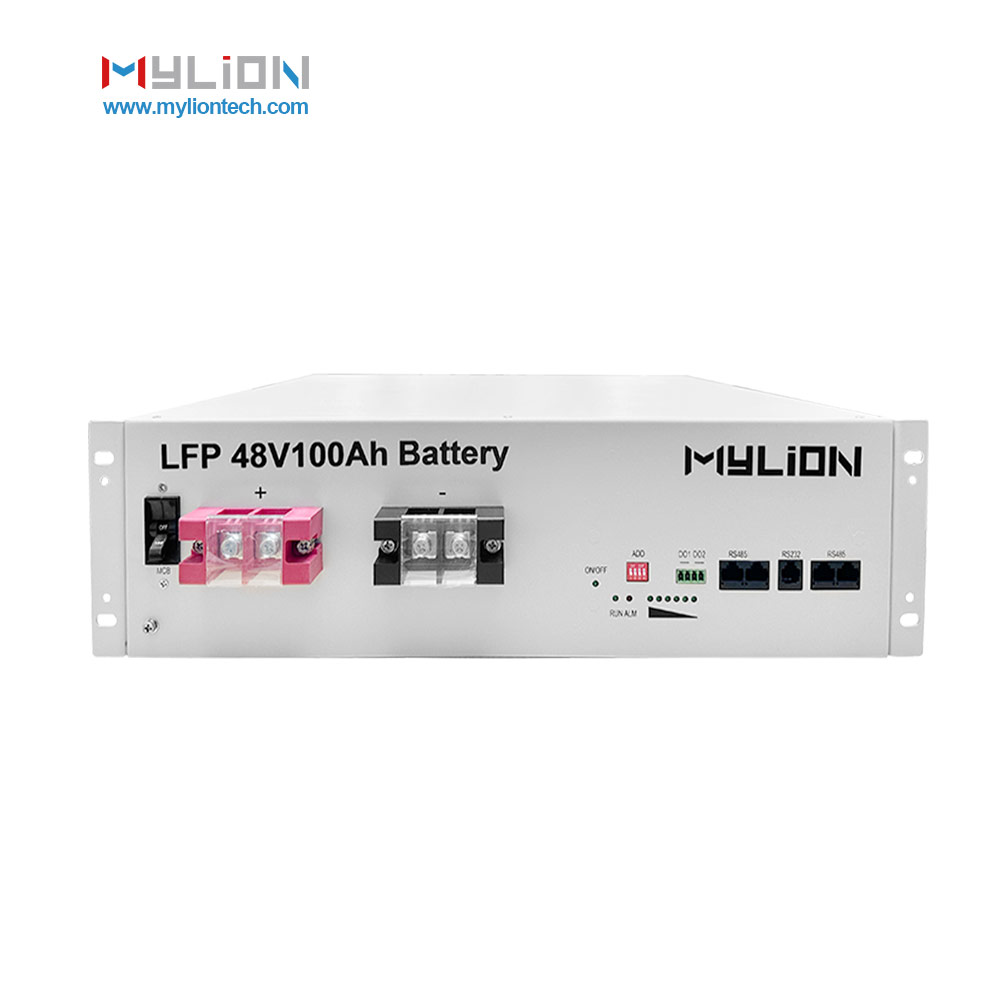

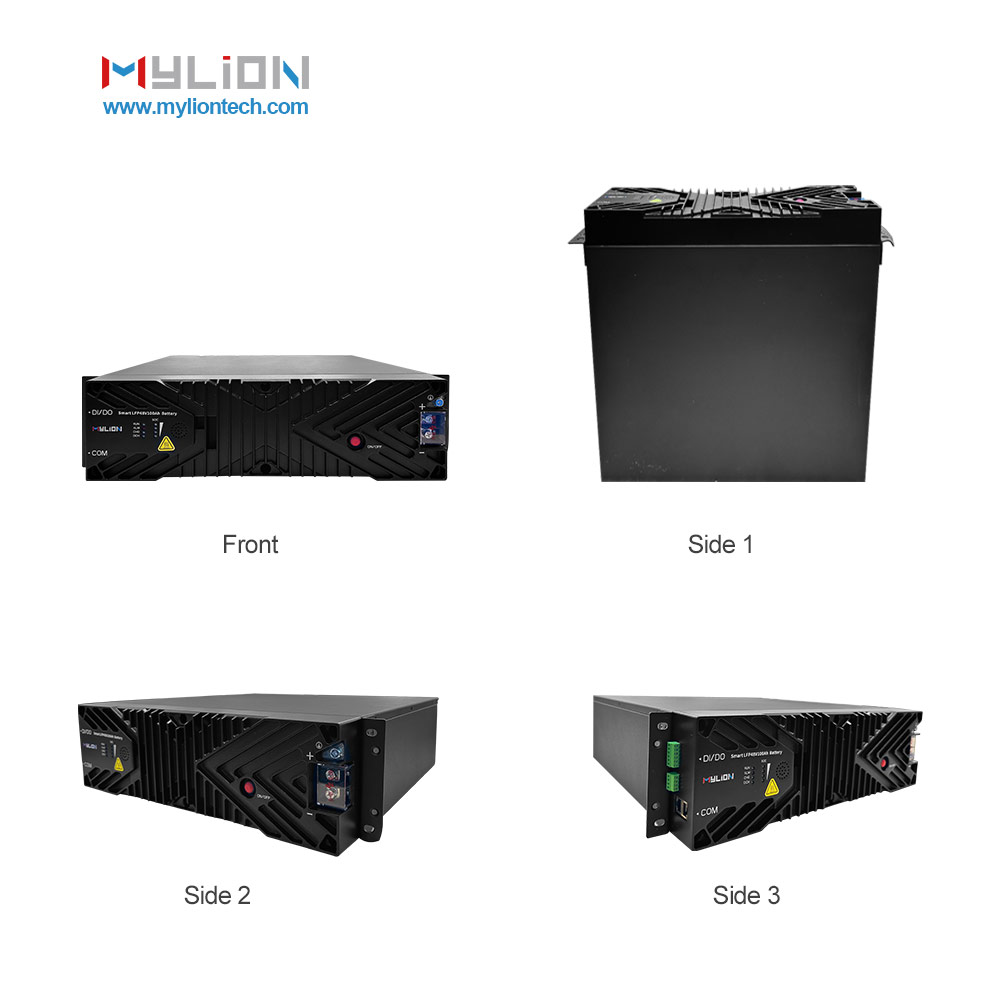

LFP48V100Ah battery pack 4.8kWh

Nominal capacity:100Ah

Nominal voltage: 48V

Rated charge/discharge rate: 0.5C

Communication: RS485/RS232

Cycle life: 3500 (80%DODM 80% EOL)

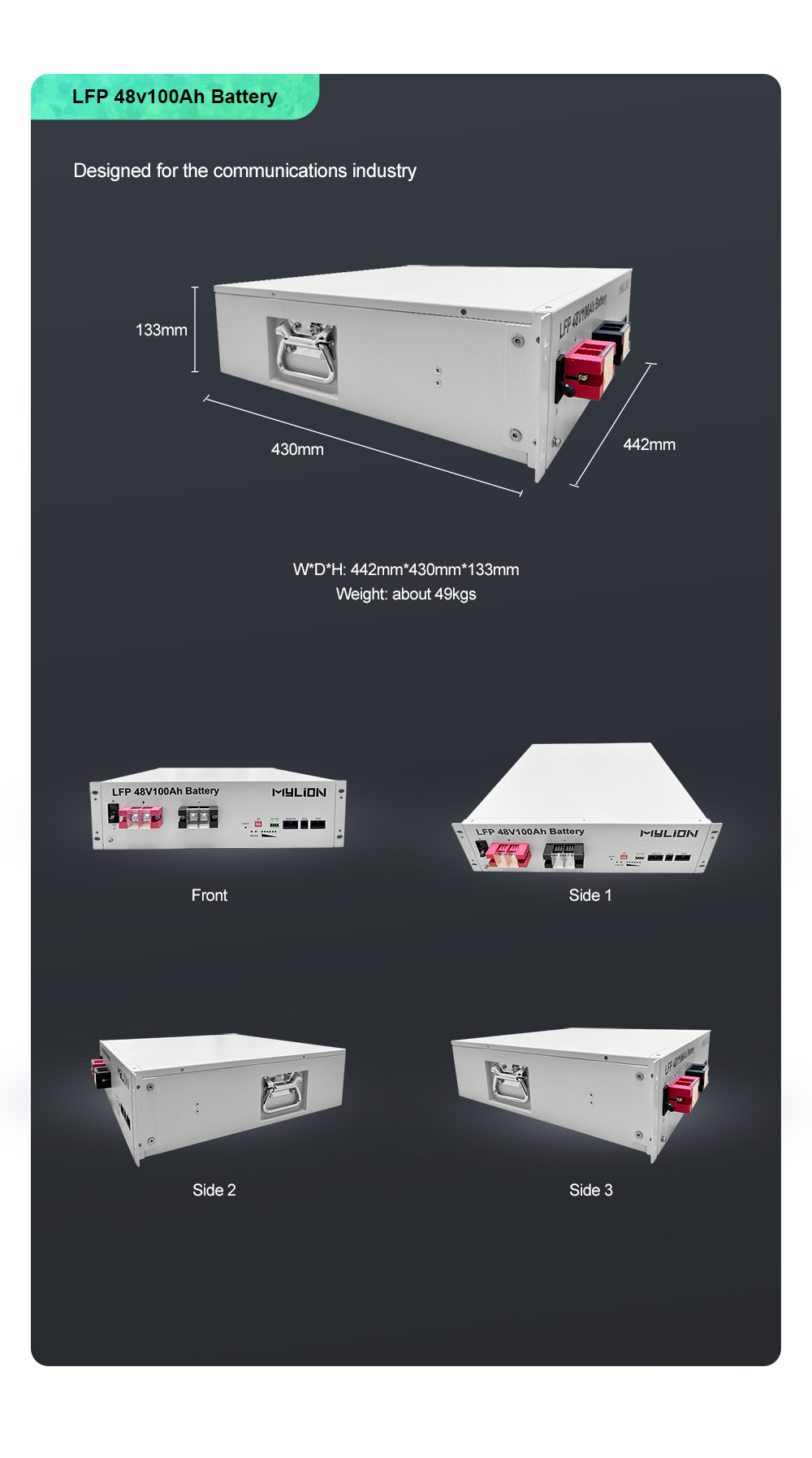

Dimension: 442*430*133(3U)

Weight:Approx.42KG

Applicable scenarios:

Home energy storage system

Telecom base station and communication equipment

UPS uninterruptible power supply

Outdoor energy storage application

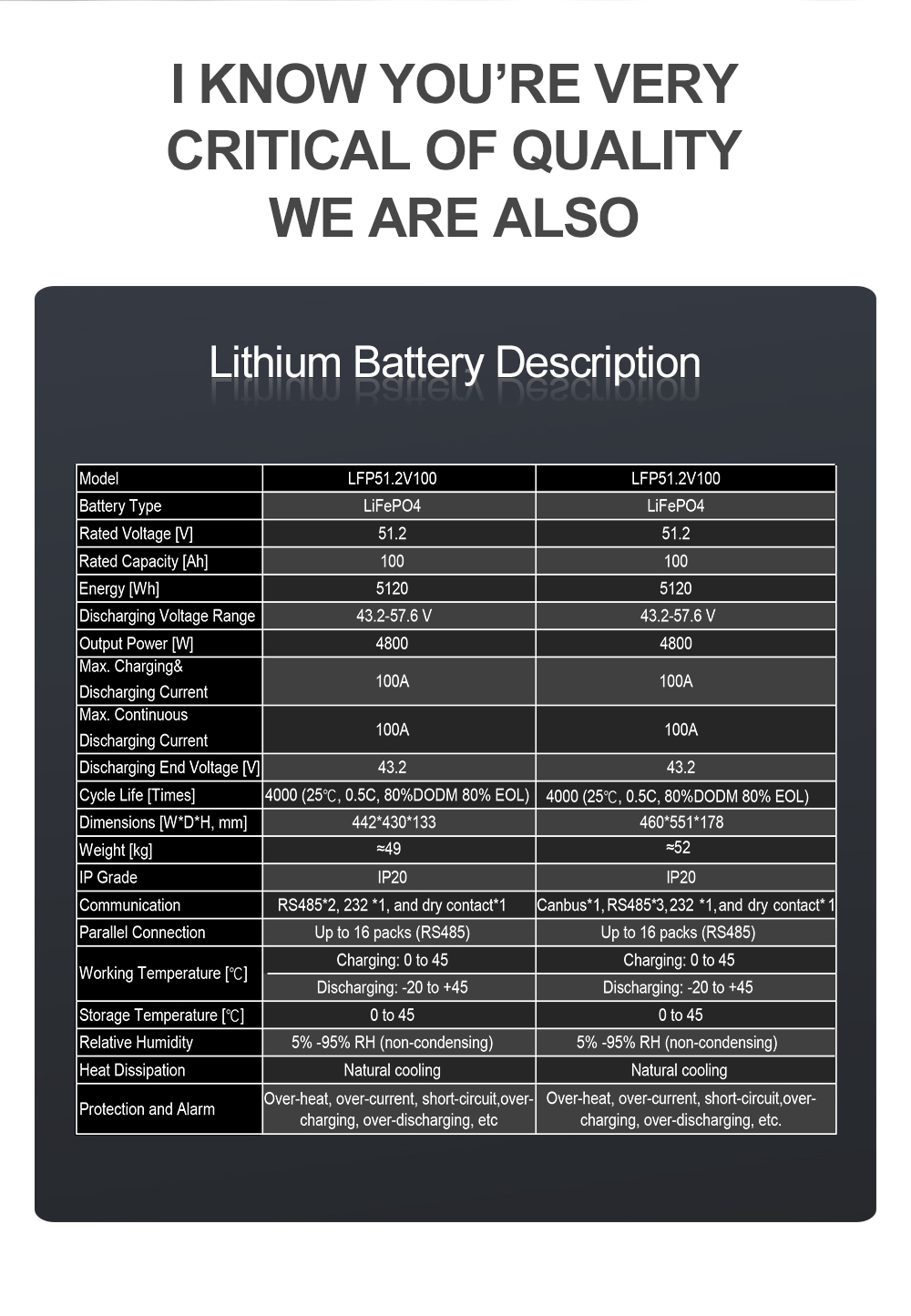

Description

Items	Specification
Nominal Capacity	100.0Ah
Nominal Voltage	48.0V
Battery box material	Aluminum flat box
Battery box Dimention	L484xW410xT178mm
Weight	~50Kg

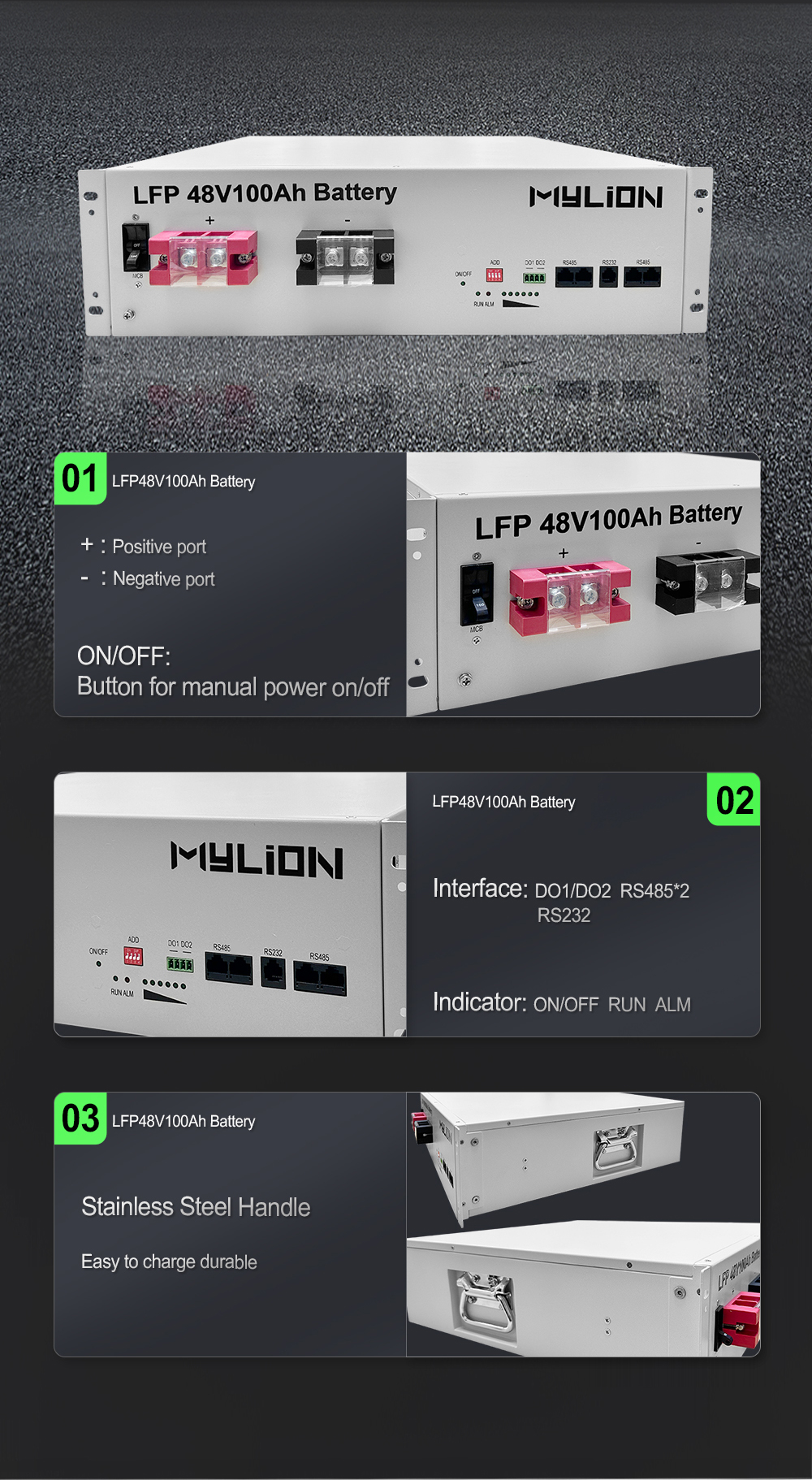

Charge&discharge port	Terminal connector
LCD	LCD Display
LED Indication Function	The current power consumption and operation status of the product are shown through LED indicator
Switch	ON/OFF
Lifting handle	yes
Internal Impedance	≤50mΩ (at 1KHz after50% charge)
Standard Charging	20A 53.25V 0.5A (Constant current&voltage)End current 0.5A
Charging Voltage	53.25V
Max. Continuous Charge Current	50.0A at 25±3°C
Standard Discharging	50A Constant current( end voltage 40.5V)
Max Continuous Discharge Current	100.0A at 25±3°C
Max Output Power	4.8KW at 25±3°C
Operating Temperature	Charge 0°C~ 60°C
Operating Temperature	Discharge -20°C~ 60°C
Storage Temperature	1 month -20°C~ 45°C
	3 month -20°C~ 35°C
	6 month -20°C~ 25°C
Power Cable Terminal	TTC
Communication Function	RS485/CAN communication
Communication Function	The product adopts isolated communication design, supports RS485/CAN communication mode, RS485 communication default baud rate is 9600 bps, 8 bit data bit, 1 bit stop bit, no test bit; The default baud rate of CAN communication is 500Kbps;
