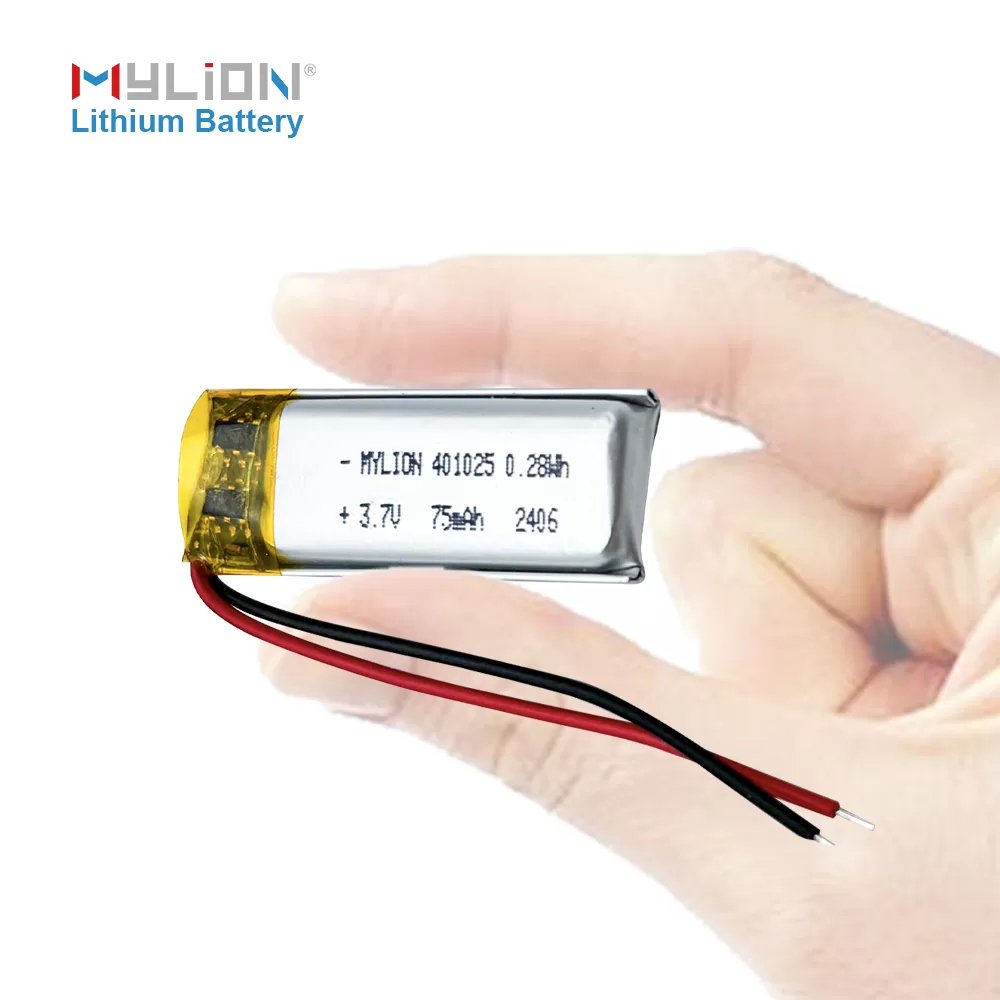

3.7V 75mAh 401025
3.7V 75mAh 401025
3.7V 75mAh Lithium Polymer Battery 401025 for Bluetooth and Consumer Electronics - Image 3
3.7V 75mAh Lithium Polymer Battery 401025 for Bluetooth and Consumer Electronics - Image 4
3.7V 75mAh Lithium Polymer Battery 401025 for Bluetooth and Consumer Electronics - Image 5
3.7V 75mAh Lithium Polymer Battery 401025 for Bluetooth and Consumer Electronics - Image 6
3.7V 75mAh Lithium Polymer Battery 401025 for Bluetooth and Consumer Electronics - Image 7

3.7V 75mAh Lithium Polymer Battery 401025 for Bluetooth and Consumer Electronics

  • Model: 401025 lithium polymer battery

  • Nominal Voltage: 3.7V

  • Nominal Capacity: 75mAh, suitable for low-power applications

  • Charge Parameters:

    • Max charge voltage: 4.2V

    • Standard charge current: 75mA

Category: Tag:

Description

Product name Lithium polymer battery 3.7V 75mAh 401025
Style name 3.7V 75mAh
Norminal Capacity  75mAh
Nominal Voltage 3.6V
Max charge voltage 4.2V
Cut-off discharge voltage 3.0V
Max continuous discharge current  75mAh
Charge current  75mAh
Output power 0.28Wh
Charge port(IN) 2pin JST or Molex or selected
Discharge port(OUT)
PVC color Silver

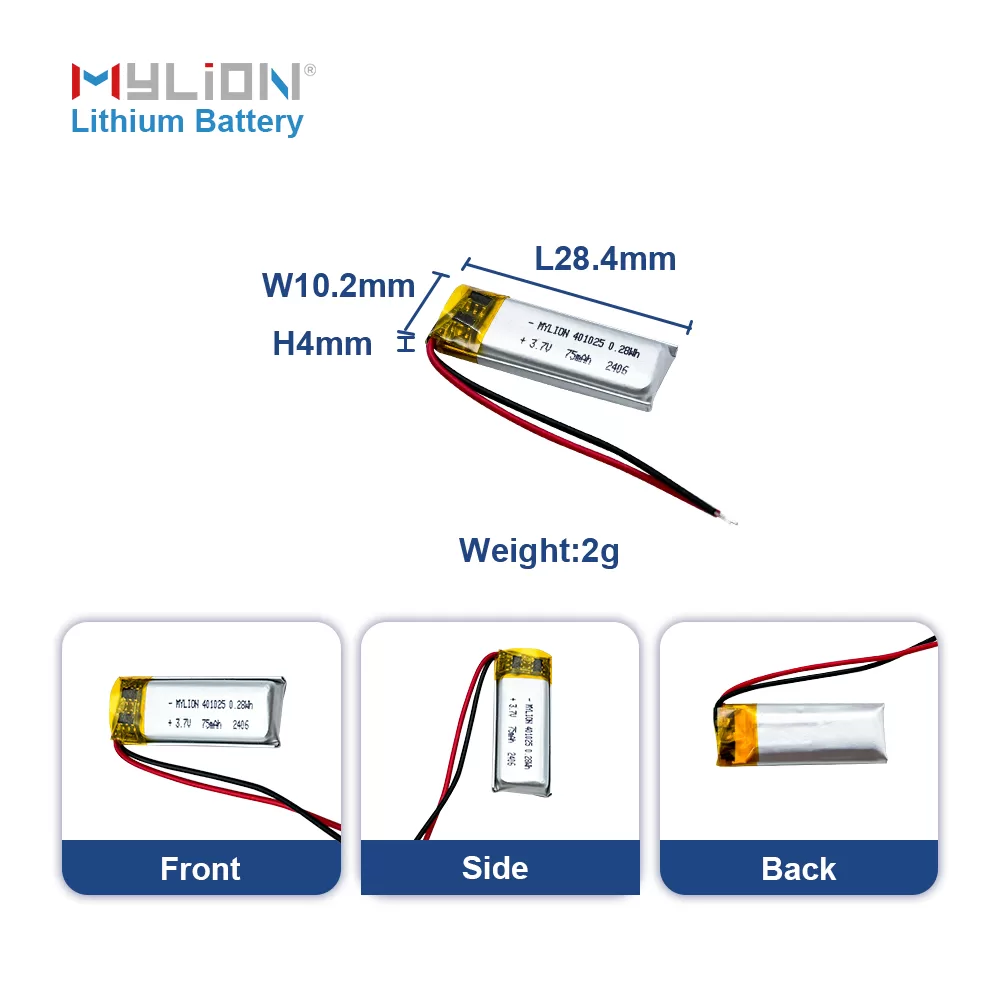

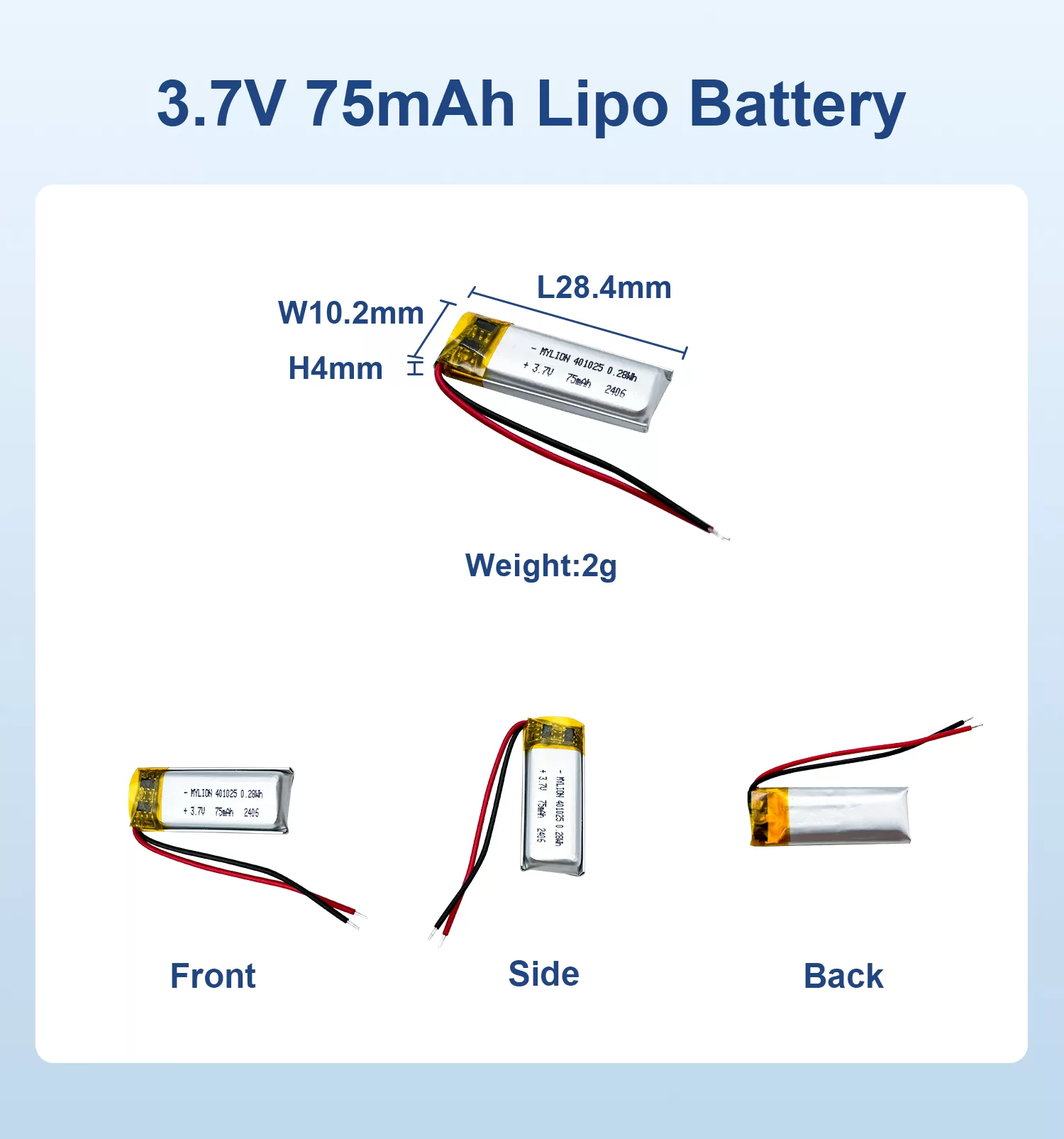

Battery dimension L28.4mmxW10.2mmxH4mm
Weight 2g
Battery cell Brand Chinese Brand cell

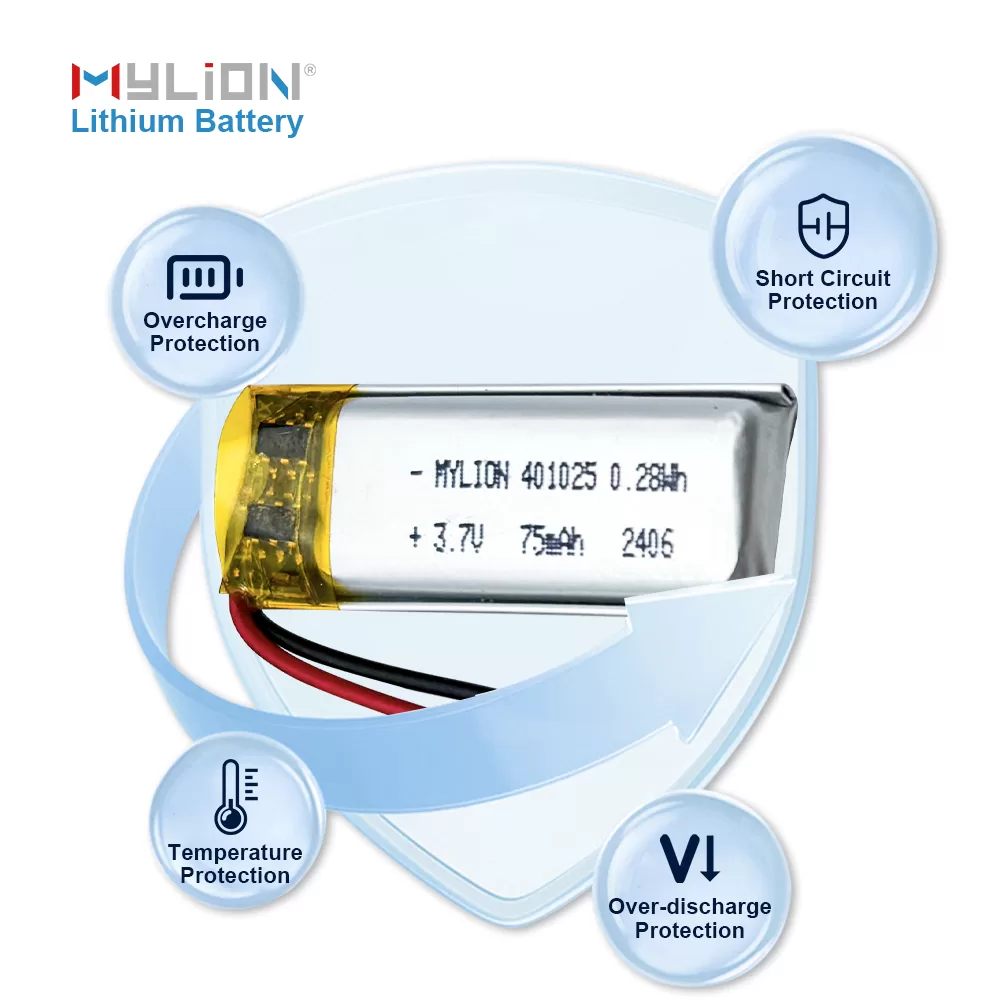

Battery protection Over charge&discharge, over current, short circuit
Cycle life standard charge&discharge capacity ≥80% C5mAh ,cycle life ≥600
Application bluetooth and consumer electroinics
Package 400pcs in a carton(35x21x30cm), about 9kgs/carton
Warranty 12months

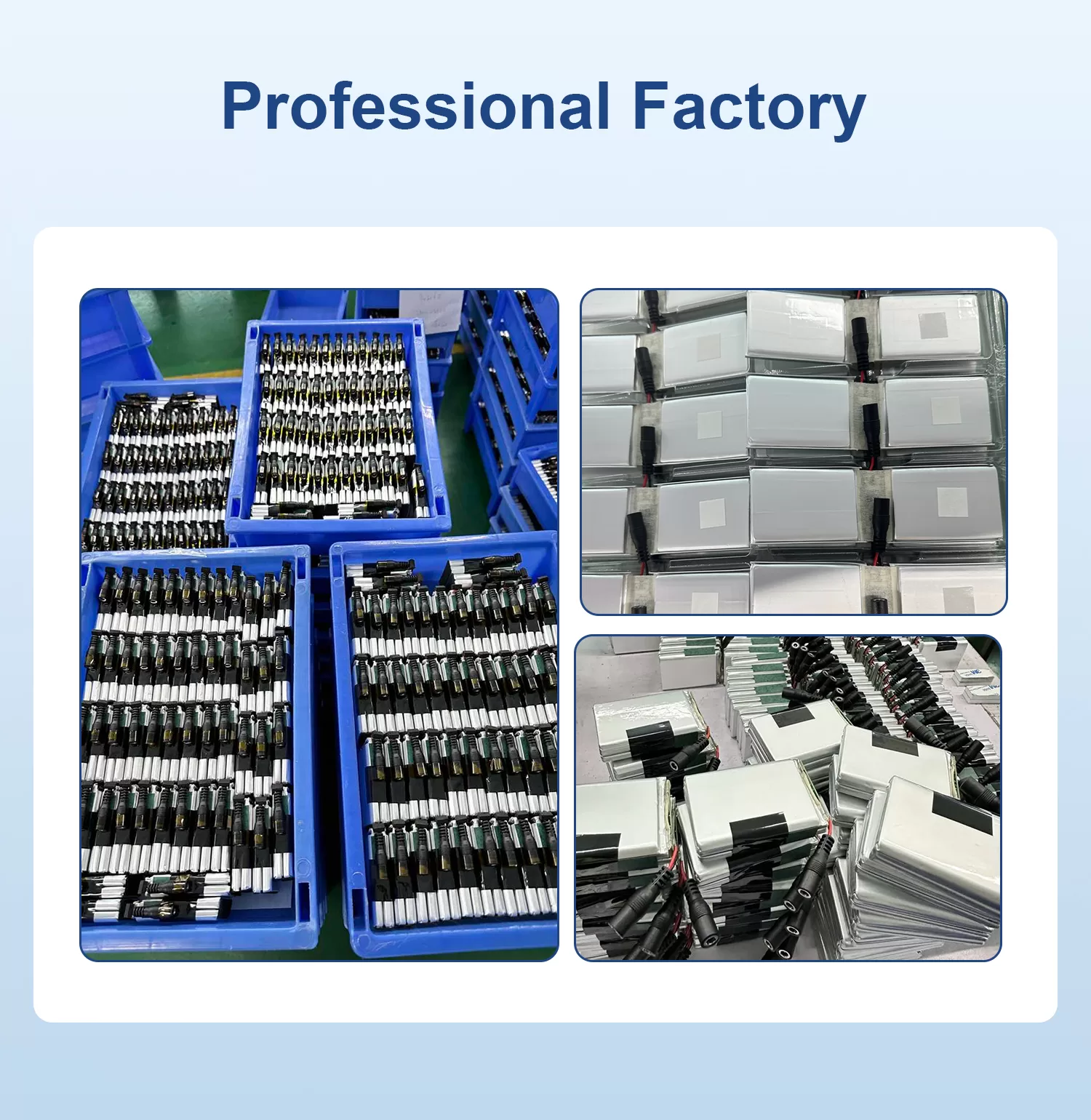

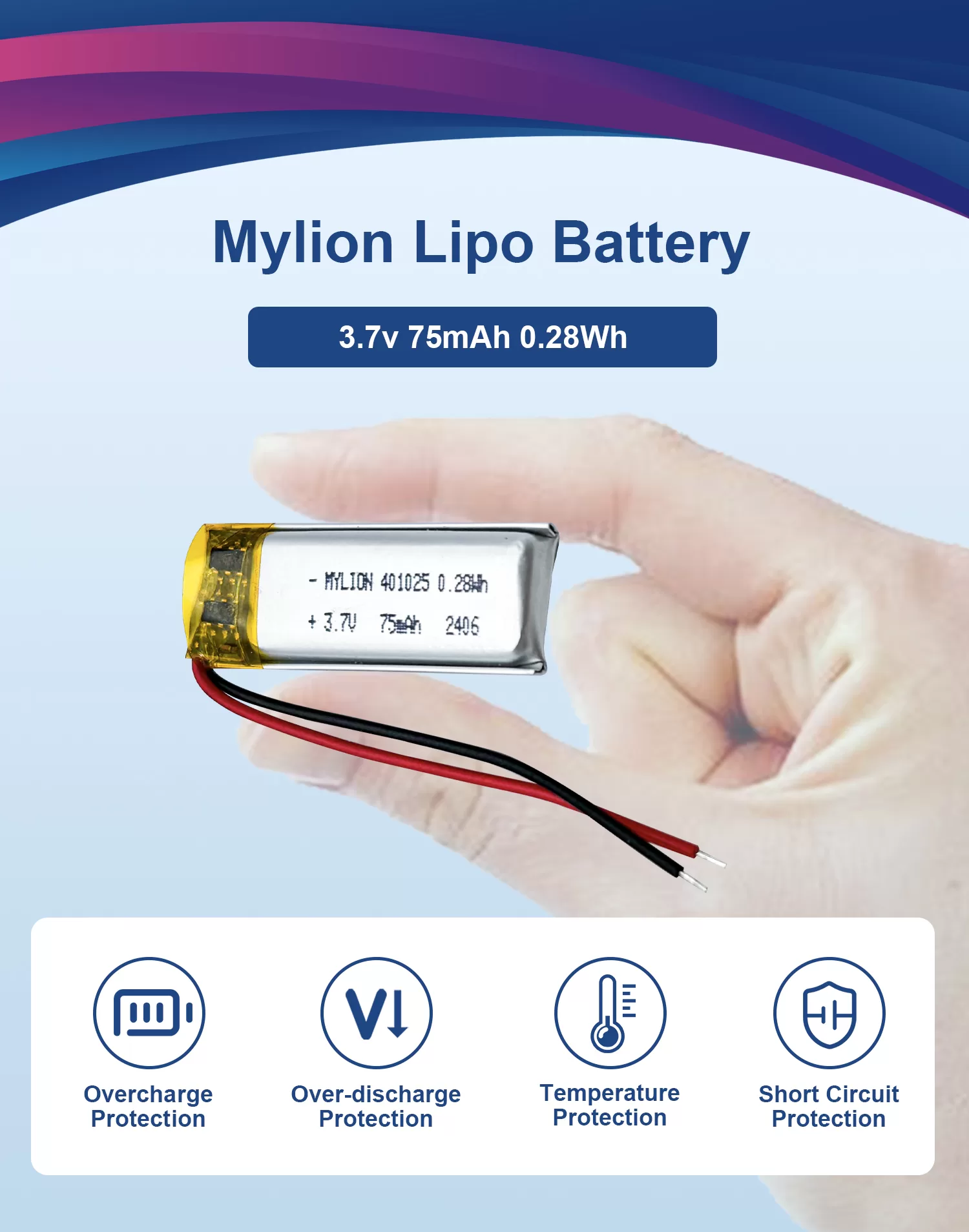

3.7V-75mAh-401025_01 3.7V-75mAh-401025_02 3.7V-75mAh-401025_03 3.7V-75mAh-401025_04 3.7V-75mAh-401025_05 3.7V-75mAh-401025_06
